Overview

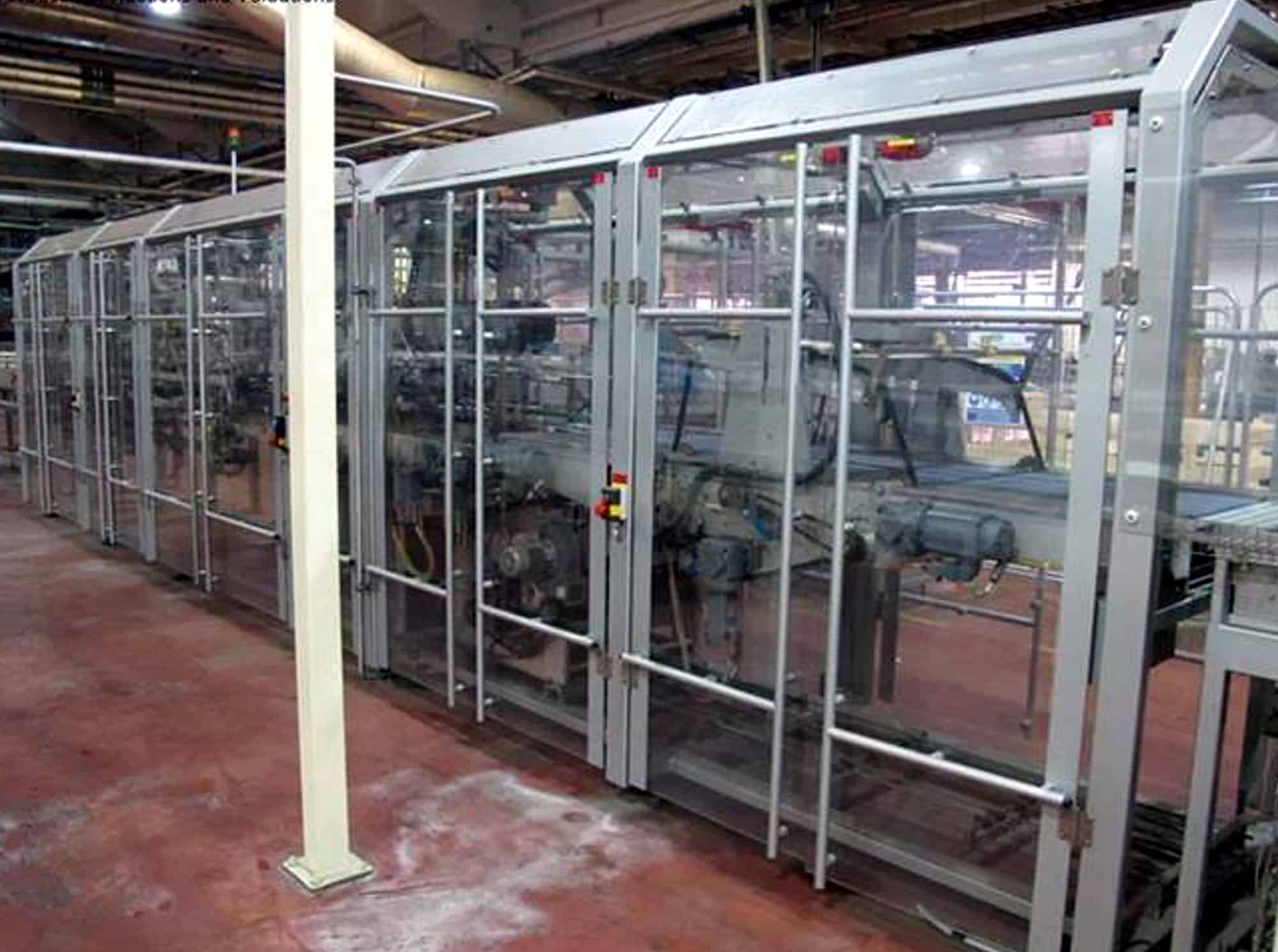

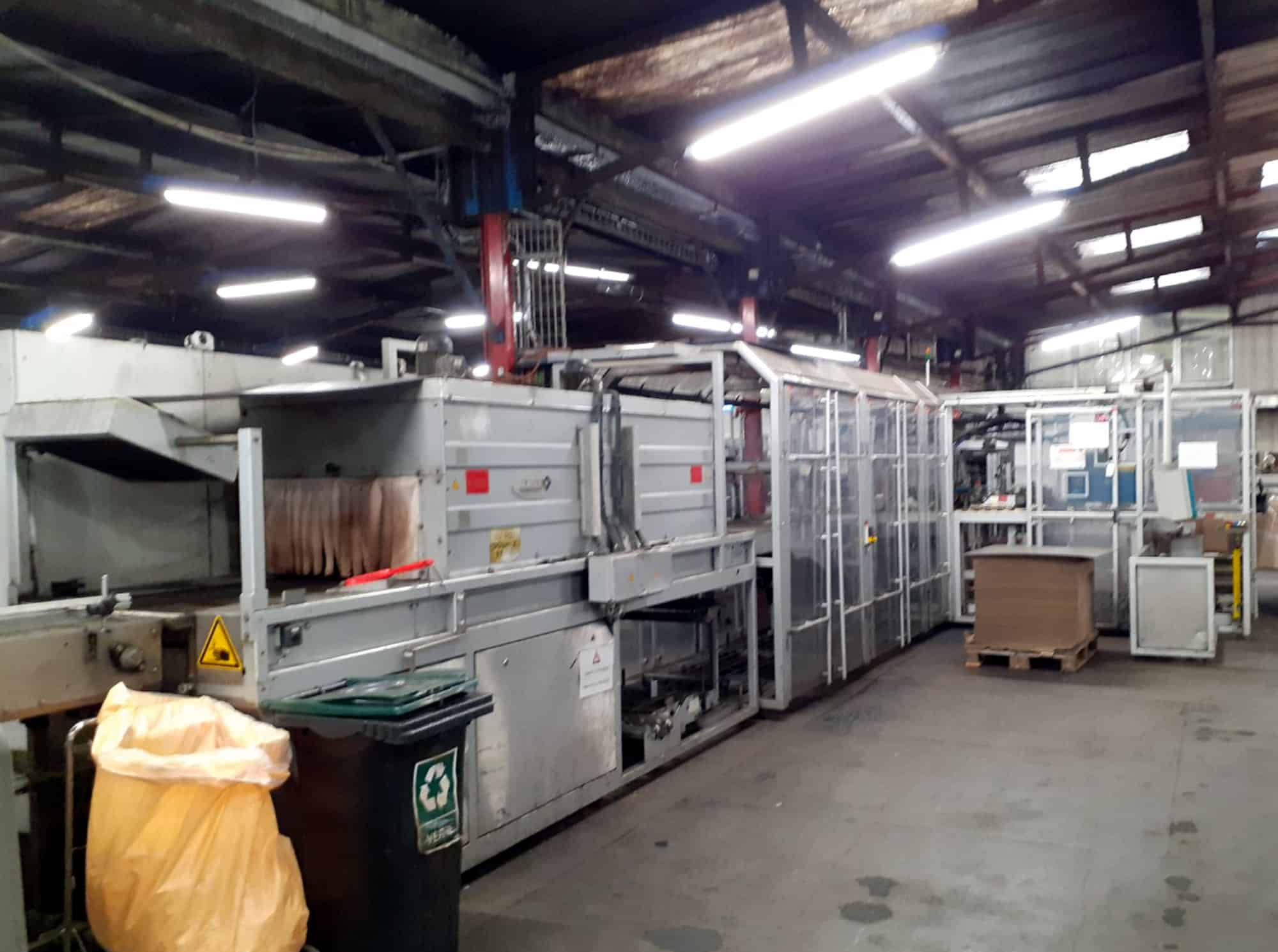

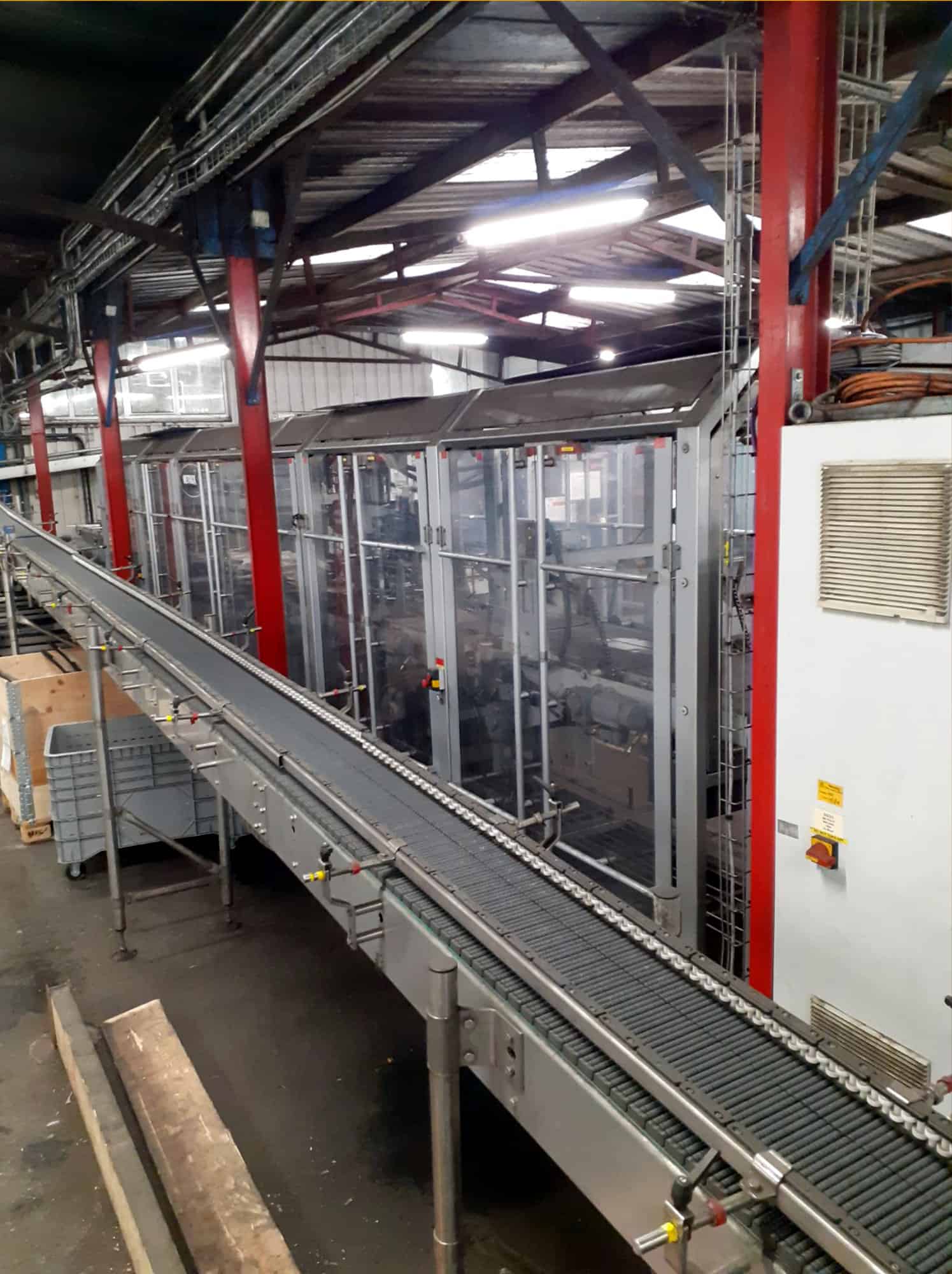

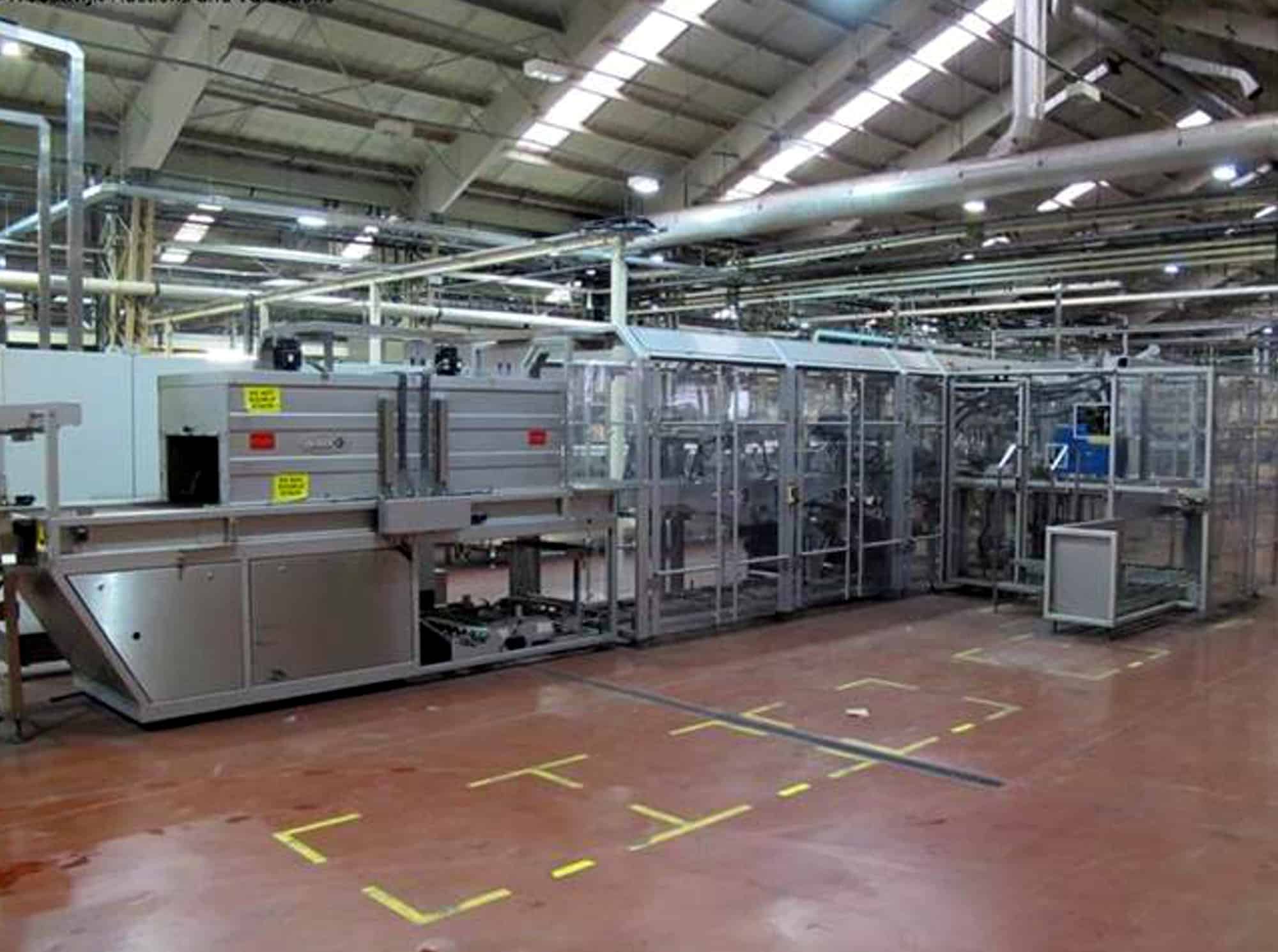

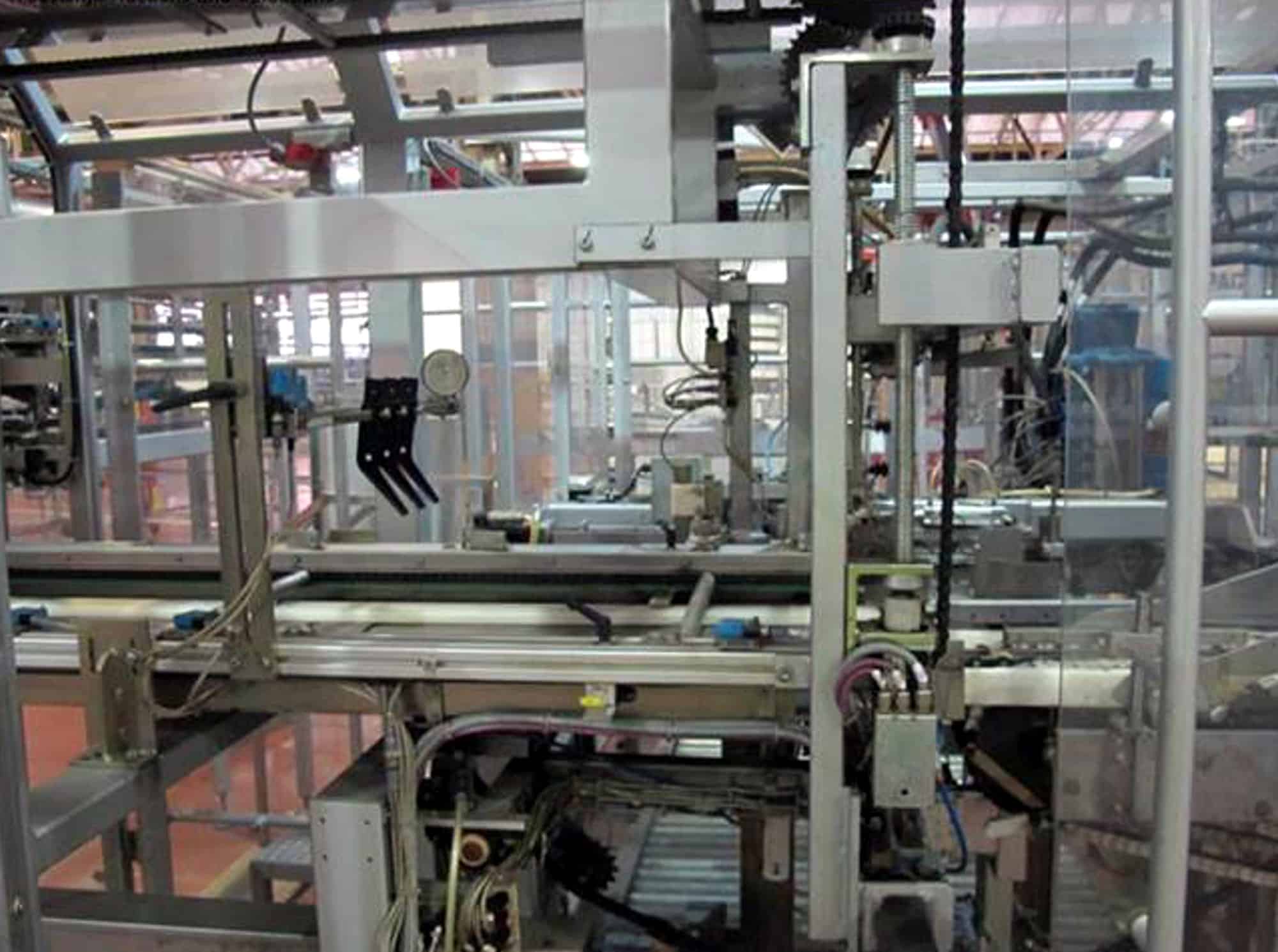

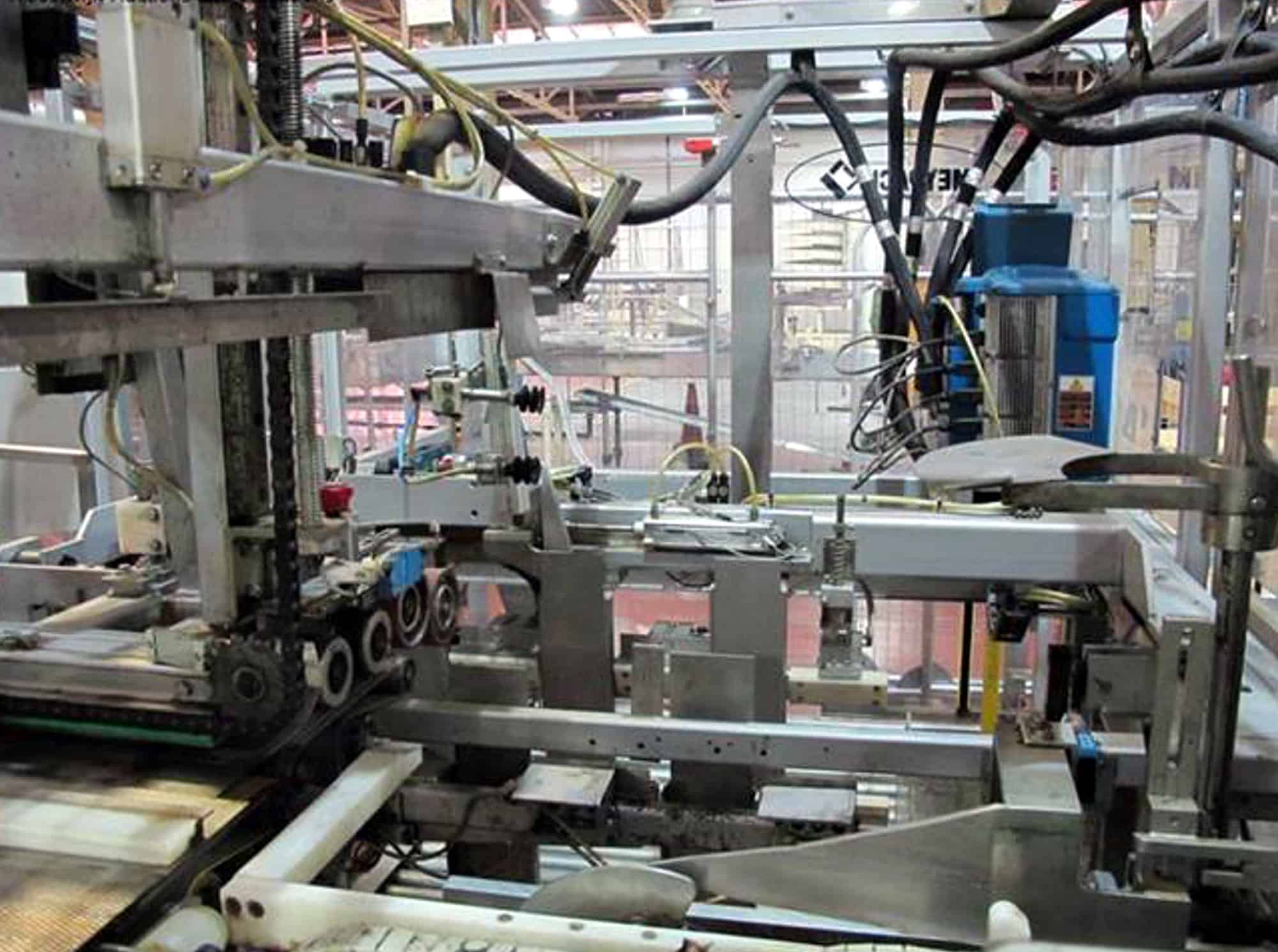

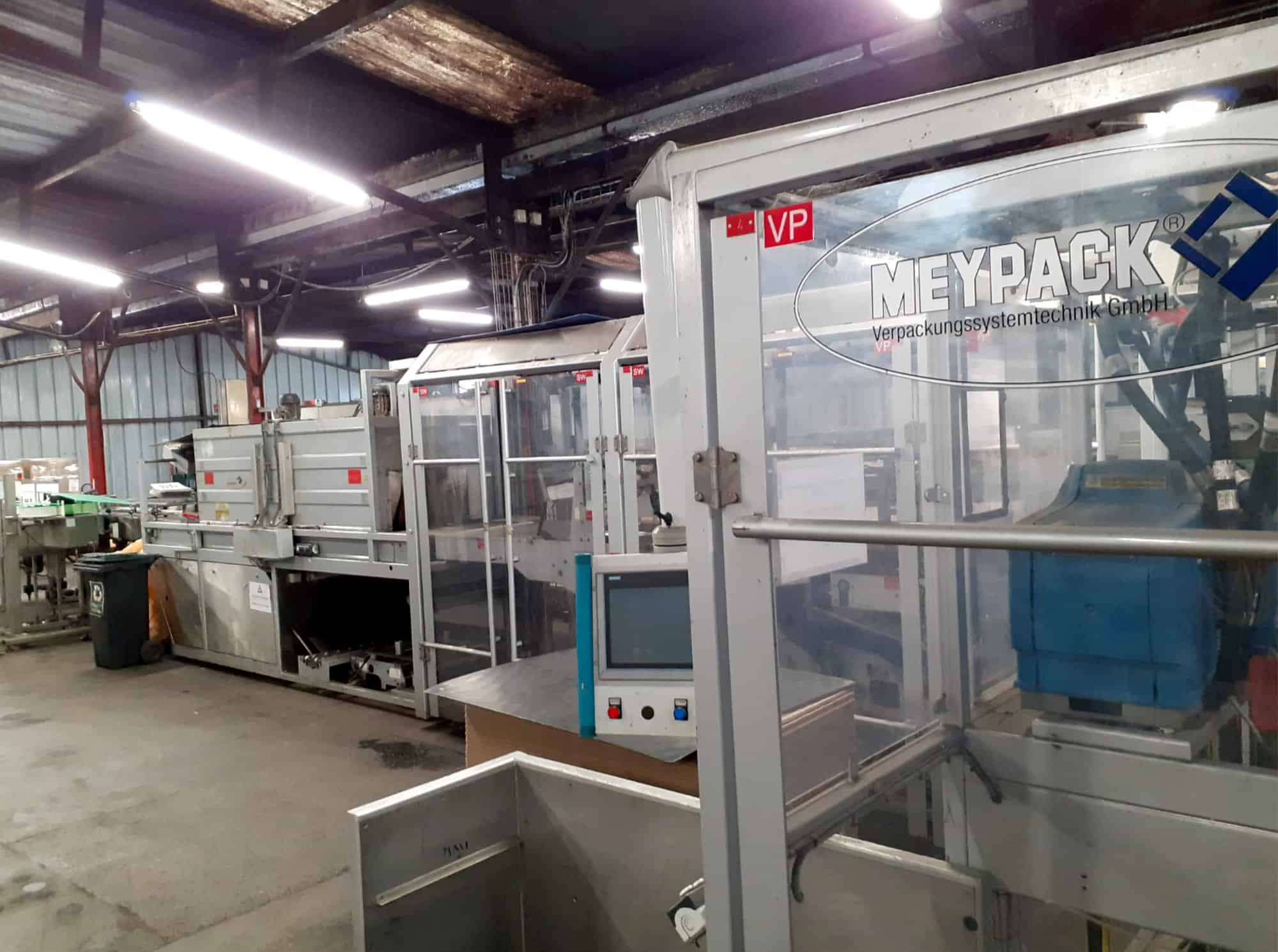

Continuous Motion High Speed Tray / Wrap Around – Shrink Wrap- Packaging Line for the fully automatic and continuous packing of bottles into trays and subsequent shrink wrapping of the trays or into wrap-around cases. Wide range of formats processable.

Tech Specs:

• Capacity: up to 30 packs / Minute, see below
• YOM: 2006

Features:

• Suitable for a wide range of formats
• Formats processed:
  1) 330ml Ø 57 x H 231 mm 3 x 4 / Tray with film
  2) 1 lt Ø 88 x H 313 mm 2 x 4 / WA
  3) 750ml Ø 88 x H 312 mm 3 x 4 / WA
  4) 330ml Ø 58 x H 216,2 * 3 x 4 / Tray with film
  5) 750ml Ø 88 x H 312 mm 2 x 3 / Tray with film
  6) 275ml Ø 58 x H 218 mm 4 x 6 / Tray w. film
  7) 1lt. PET Ø 80 x H 280 mm 3 x 4 / Tray w. film
  8) 330ml Ø 68 x H 155 * 3 x 4 / Tray with film
  9) 330ml Ø 68 x H 155 * 4 x 6 / Tray with film
  10) 330ml Ø 60 x H 227 * 3 x 4 / Tray with film
  11) 750ml Ø 82 x H 310 * 3 x 4 / WA

• Filler Speed:
  1), 6), 7)+11): 11.000 bph
  2) + 10): 9.000 bph
  3): 12.000 bph
  4) + 5): 8.500 bph
  8): 13.500 bph
  9): 15.000 bph

• Capacity: Including a 20% increase on the filler and with the above mentioned products and patterns, this equivalent to
  1) 18 packs/min.
  2) 22,5 packs/min.
  3) 20 packs/min.
  4) 30 packs/min.
  5) 28 packs/min.
  6) 10 packs/min.
  7) 18 packs/min.
  8) 22,5 packs/min.
  9) 12,5 packs/min.
  10) 7,5 packs/min.
  11) 18 packs/min.

• Pack Dimensions:
  Length: 120 – 300 mm
  Width: 210 – 400 mm
  Height: 100 – 350 mm
  Tray-edge height: 40 – 150 mm
