Overview

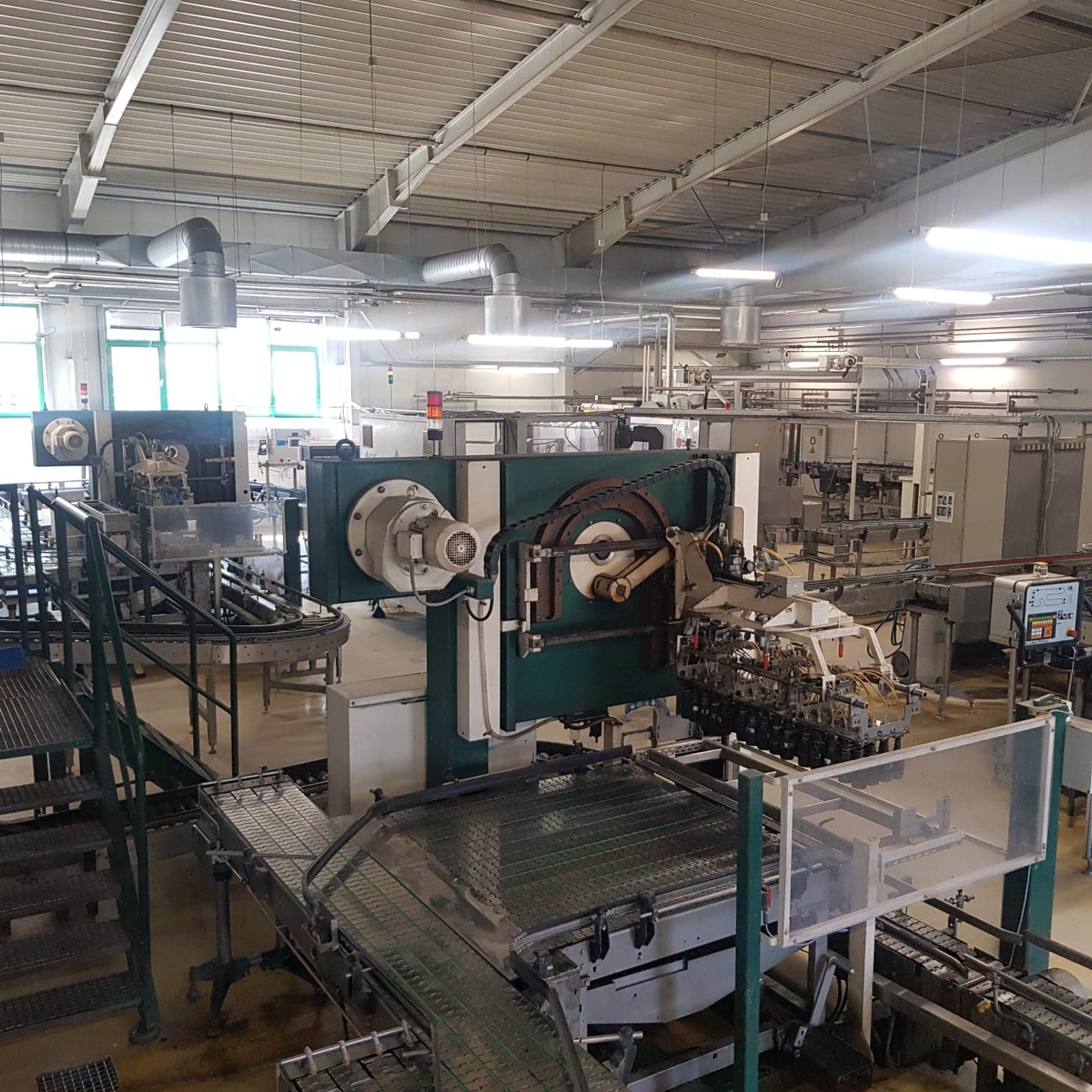

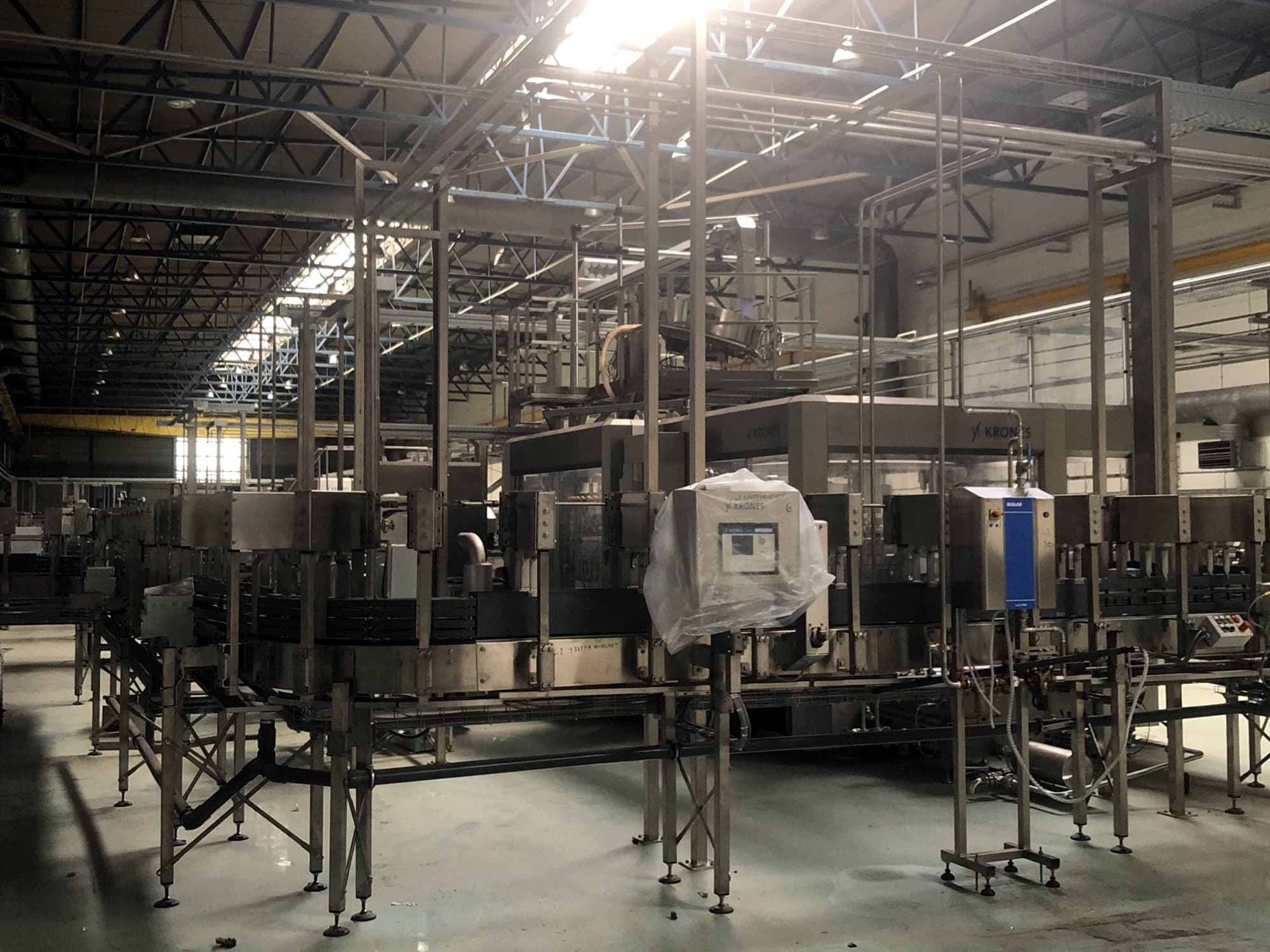

The filling line for returnable glass bottles is currently still in use in a mineral water bottling plant in Germany. The condition of the entire line is good, as it has been regularly maintained and continuously serviced. Over time, almost all controls on the older machines were also converted to Siemens S7. Furthermore, in 2005 the entire conveyor system was replaced by Sidel conveyors with associated conveyor control. The plant has a very compact design, which makes it easy to operate even with few personnel. Sidel’s buffer tables ensure good buffer times.

Tech Specs:

• Capacity: 23,000 bph at 0.75 L bottles
• Suitable for filling water, juices in glass bottles
• recently overhauled, regularly maintained
• Formats processed:
  0.75l GDB / 0.7l GDB / 0.5l GDB / 0.75l Gastro / 0.25l Gastro
• YOM: ranging from 1987 to 2016


The Line in Detail:

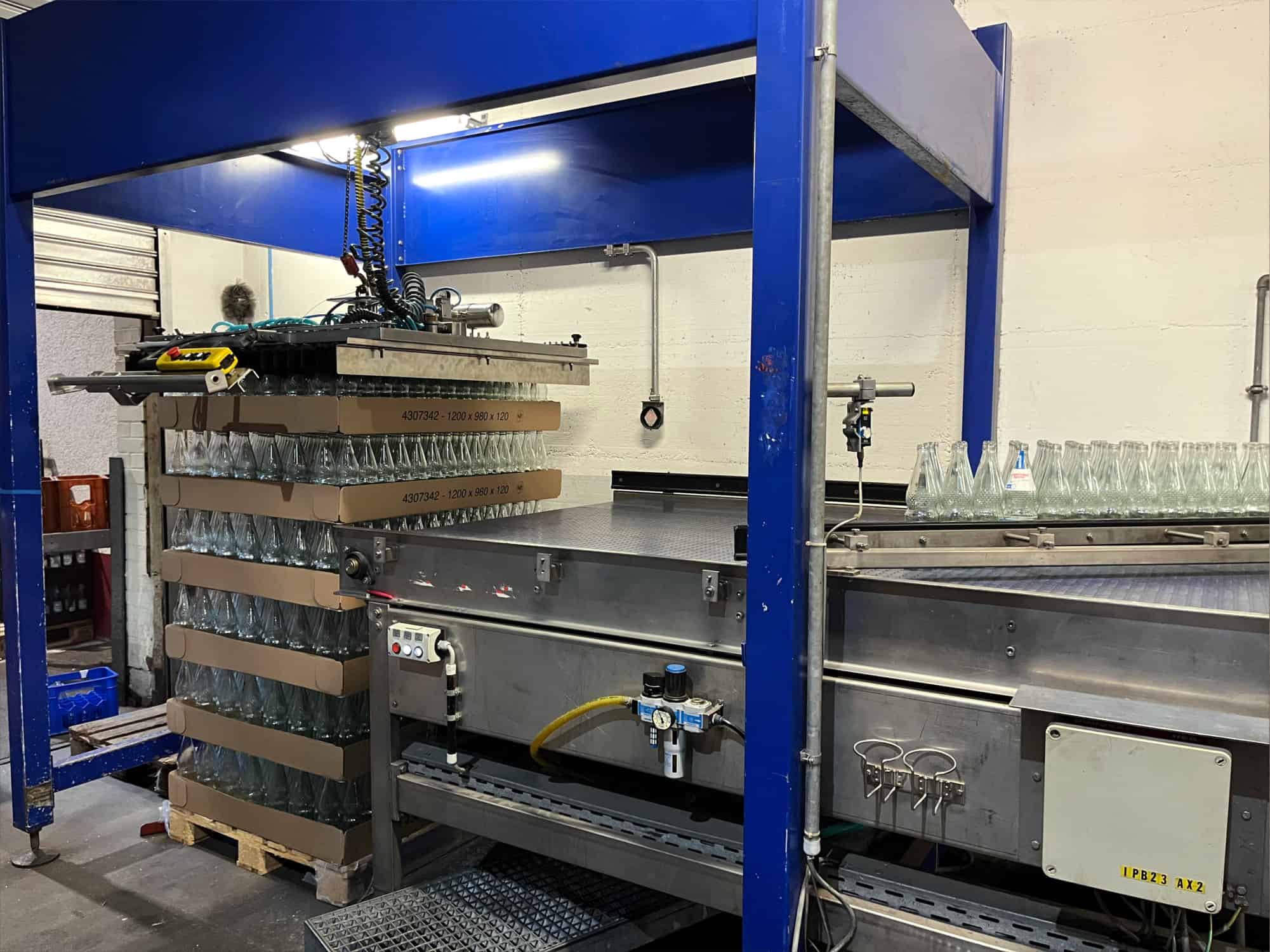

Palletizer and Depalletizer

• Manufacturer: Schäfer
• YOM: 1998
• Control: Siemens S5
• Special features:
  Intensice overhauling in 2021
  Two empty pallet magazines
  All frequency converters have been exchanged in 2021

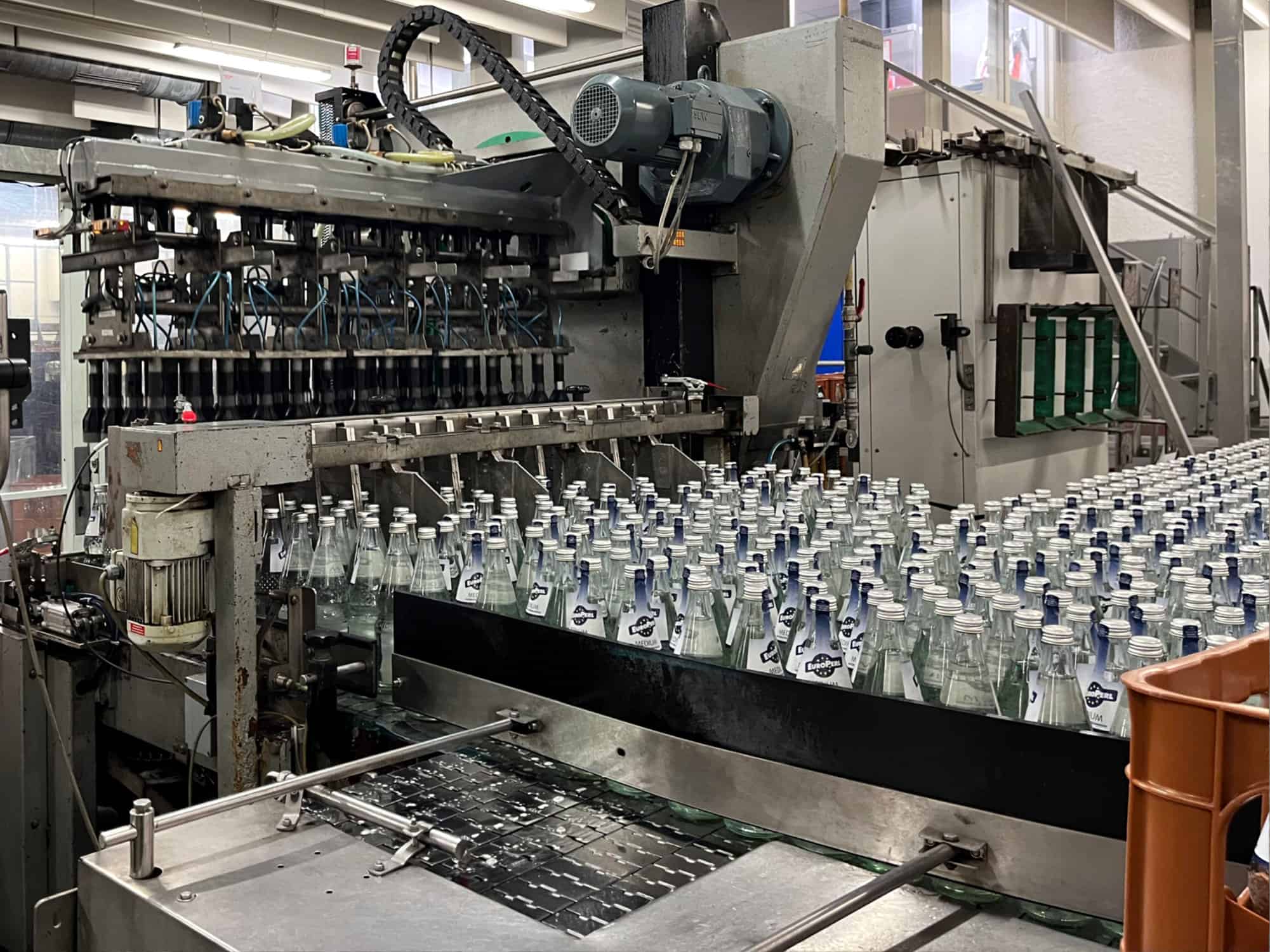

Decrater

• Manufacturer: Kettner
• Model: Blitzpack Junior
• YOM: 1987
• Control: Siemens S7

Crate Washer

• YOM: 2005

Foreign Bottle Inspector w. Camera

• Manufacturer: Krones
• Model: Checkmat
• YOM: 2016
• Control: Siemens S7

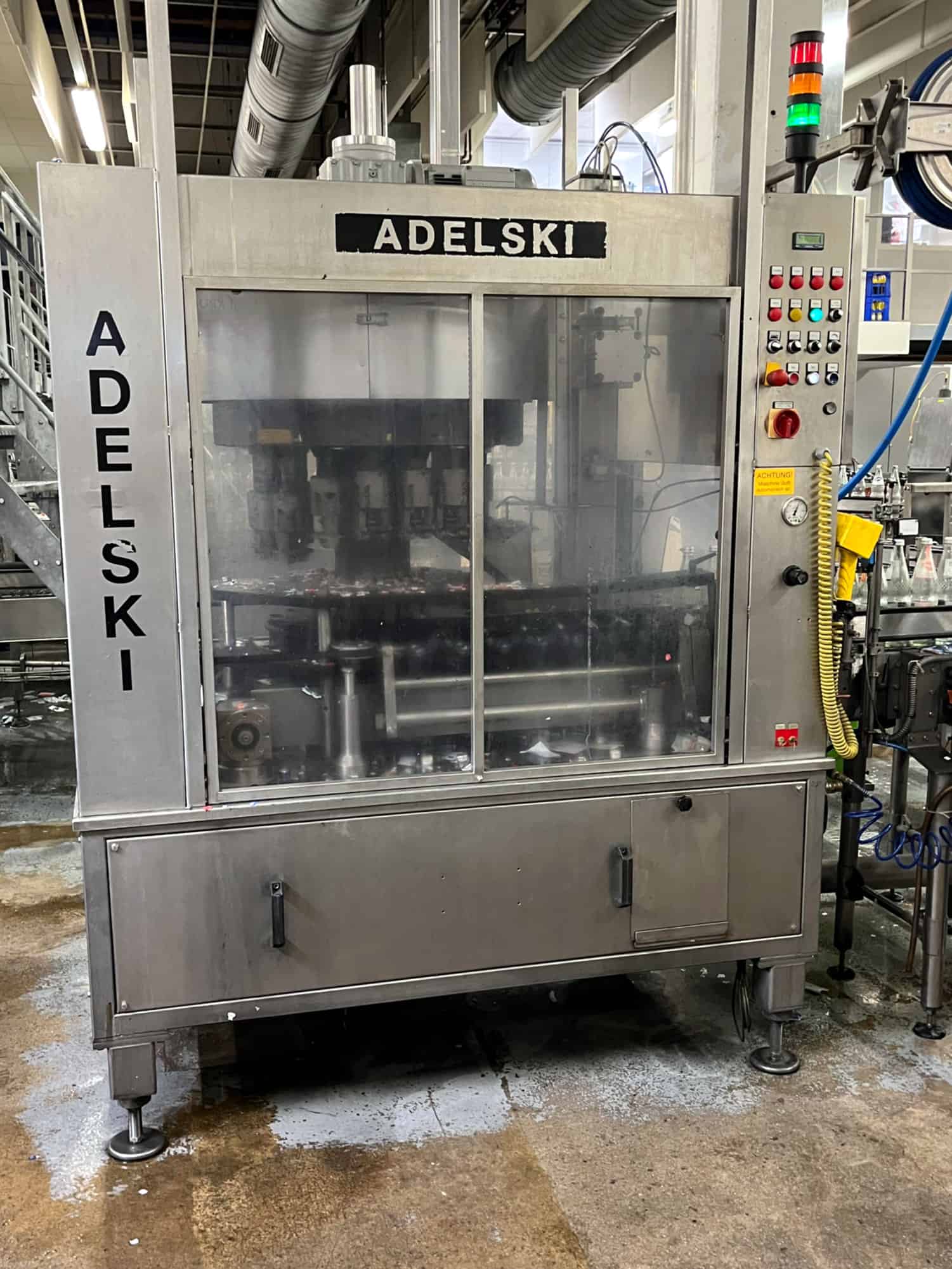

Unscrewer

• Manufacturer: Adelski
• YOM: 2005
• Control: Siemens S7

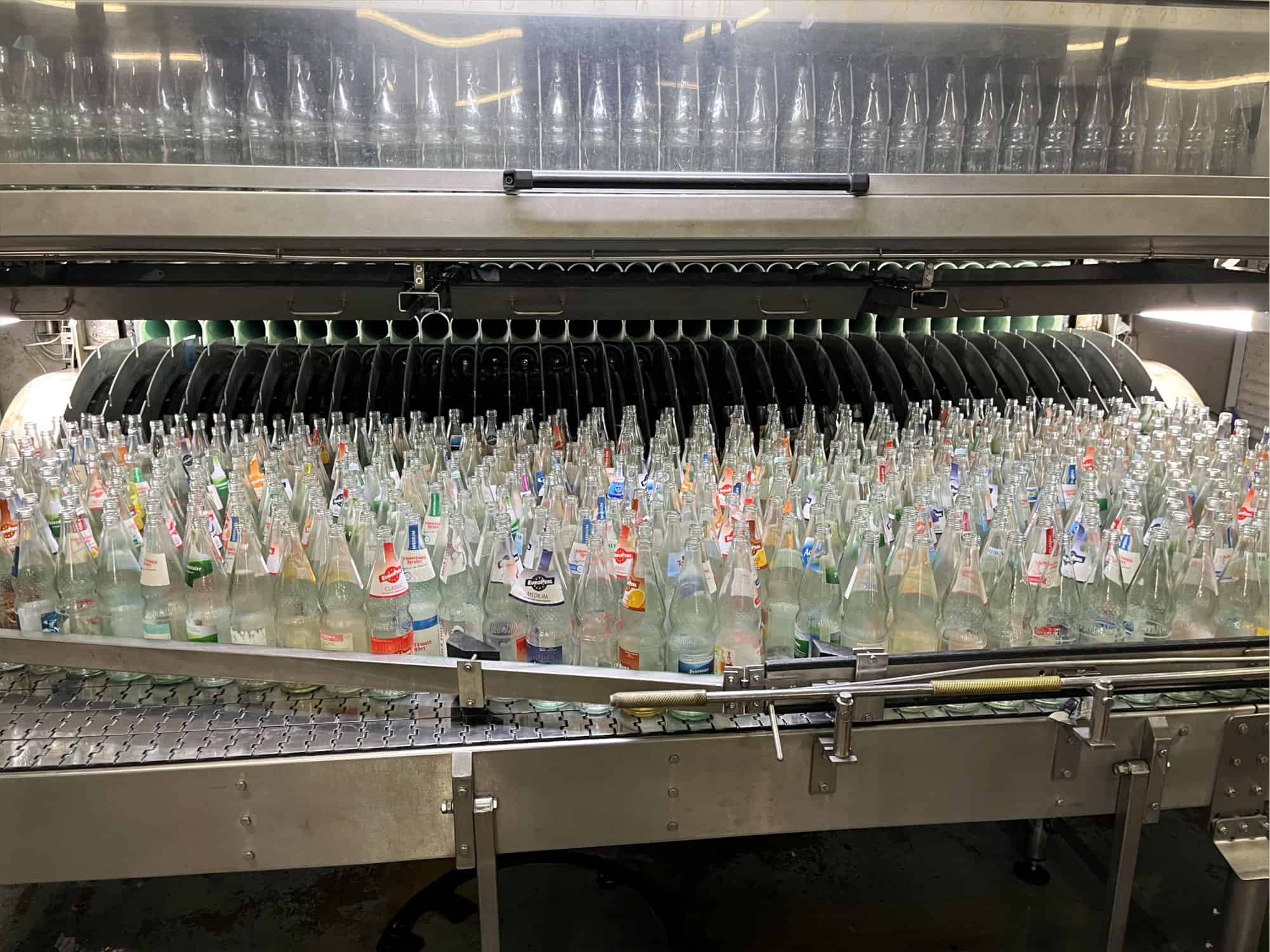

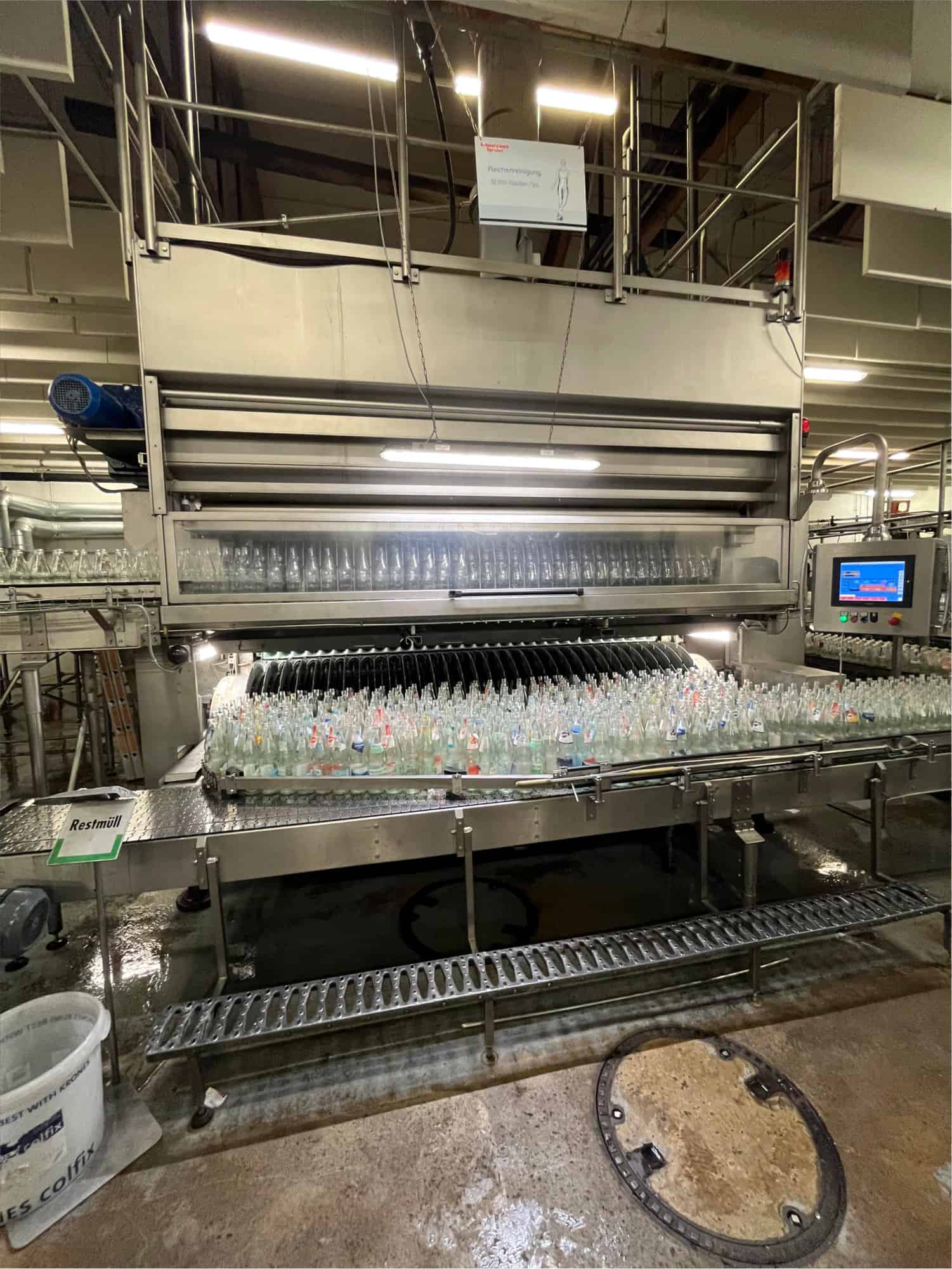

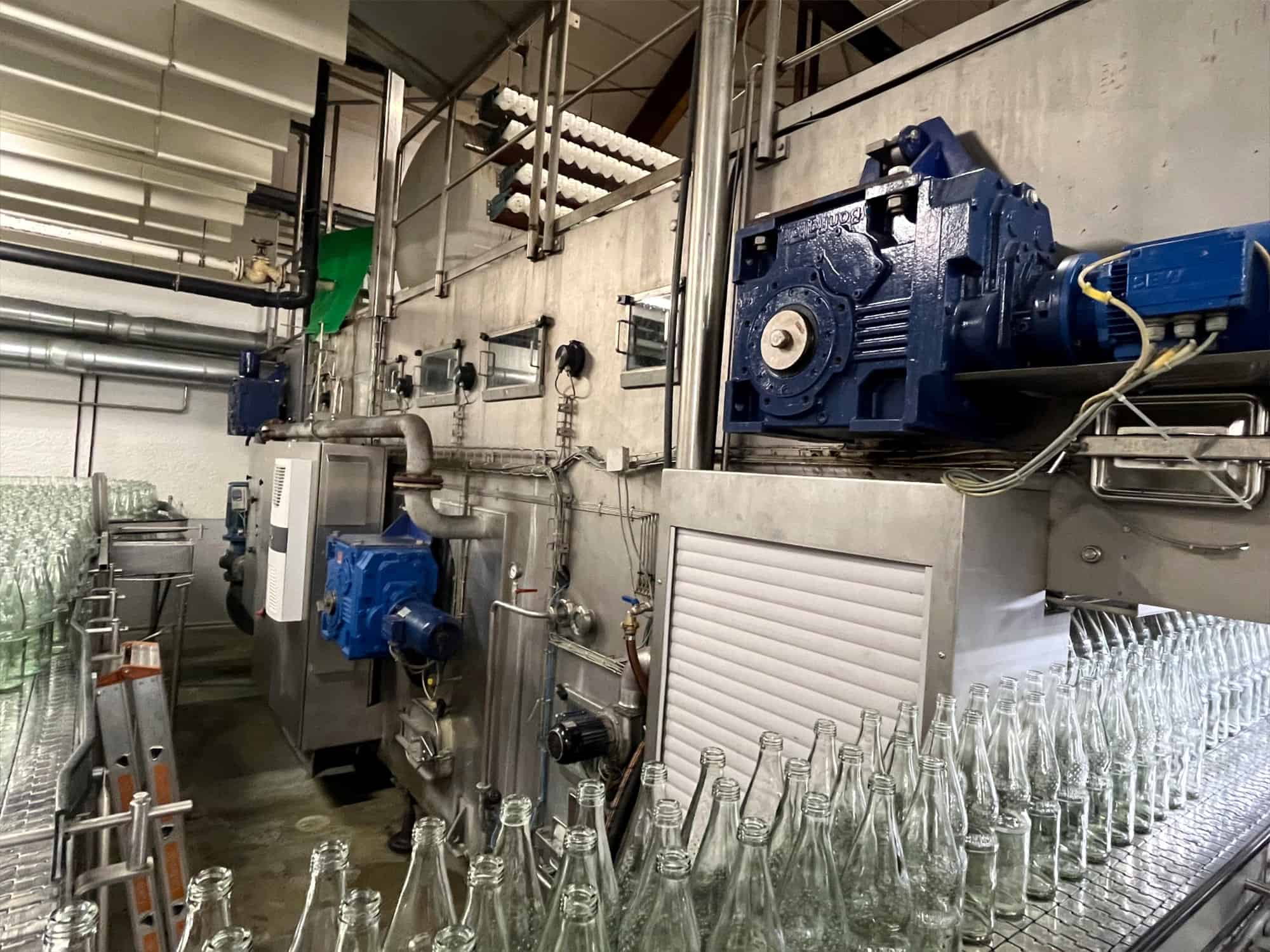

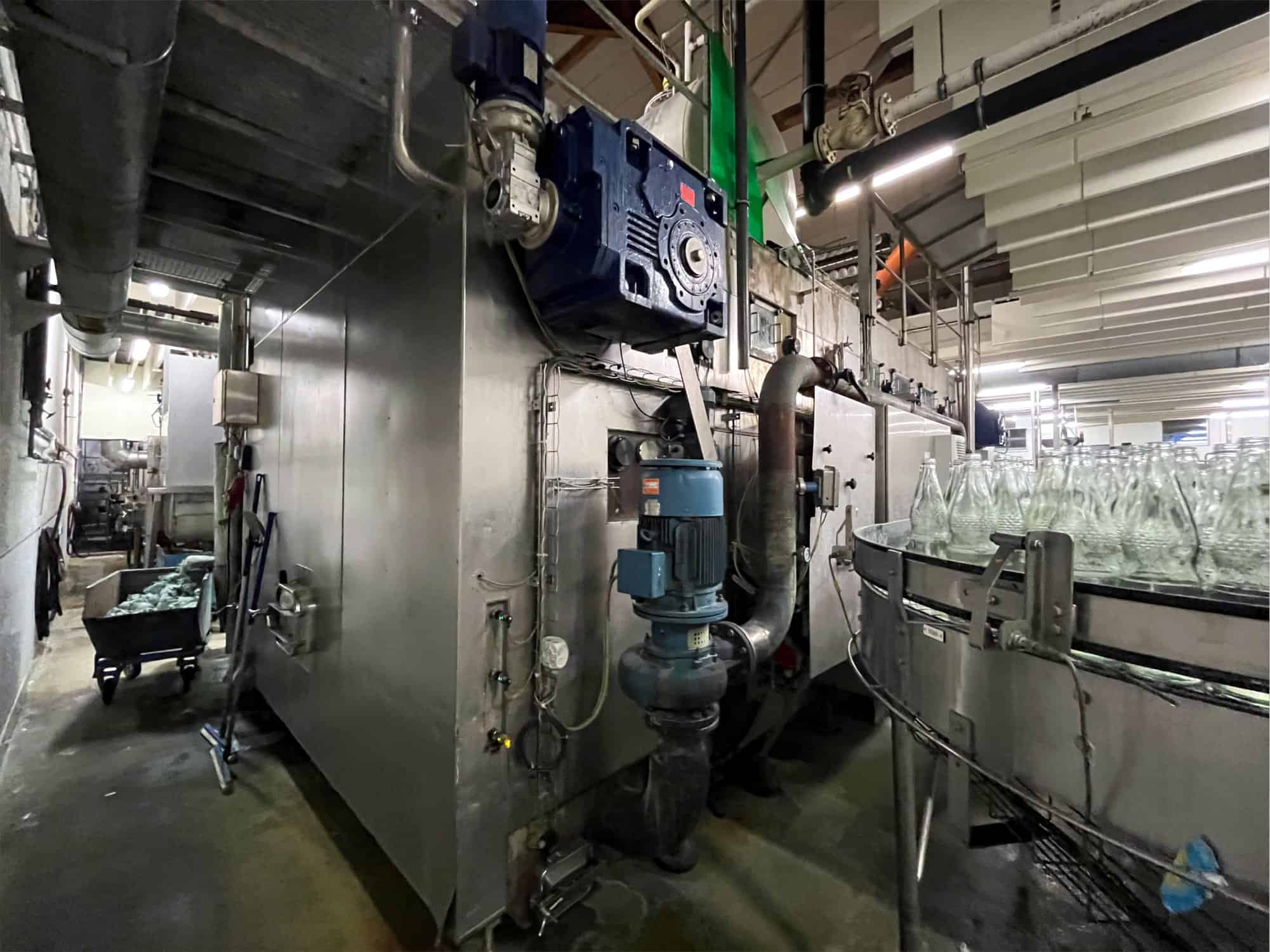

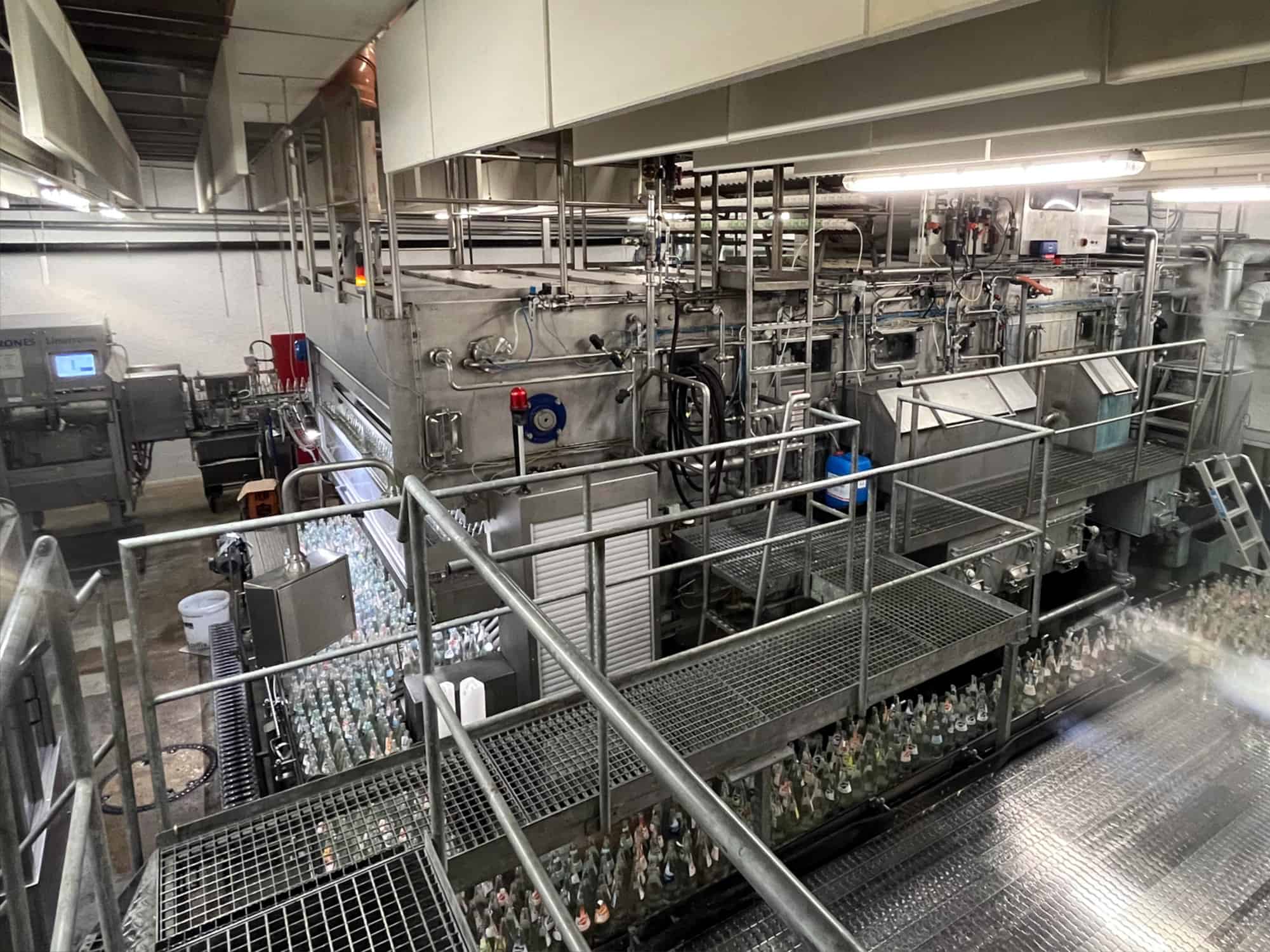

Bottle Washer

• Manufacturer: GM Gera
• Model: Arcade GEL3-RV-340/95
• YOM: 2005
• Control: Siemens S7
• Special features:
  Heat exchanger was renewed in 2017
  delivery shaft renewed 2017
  infeed table renewed in 2020

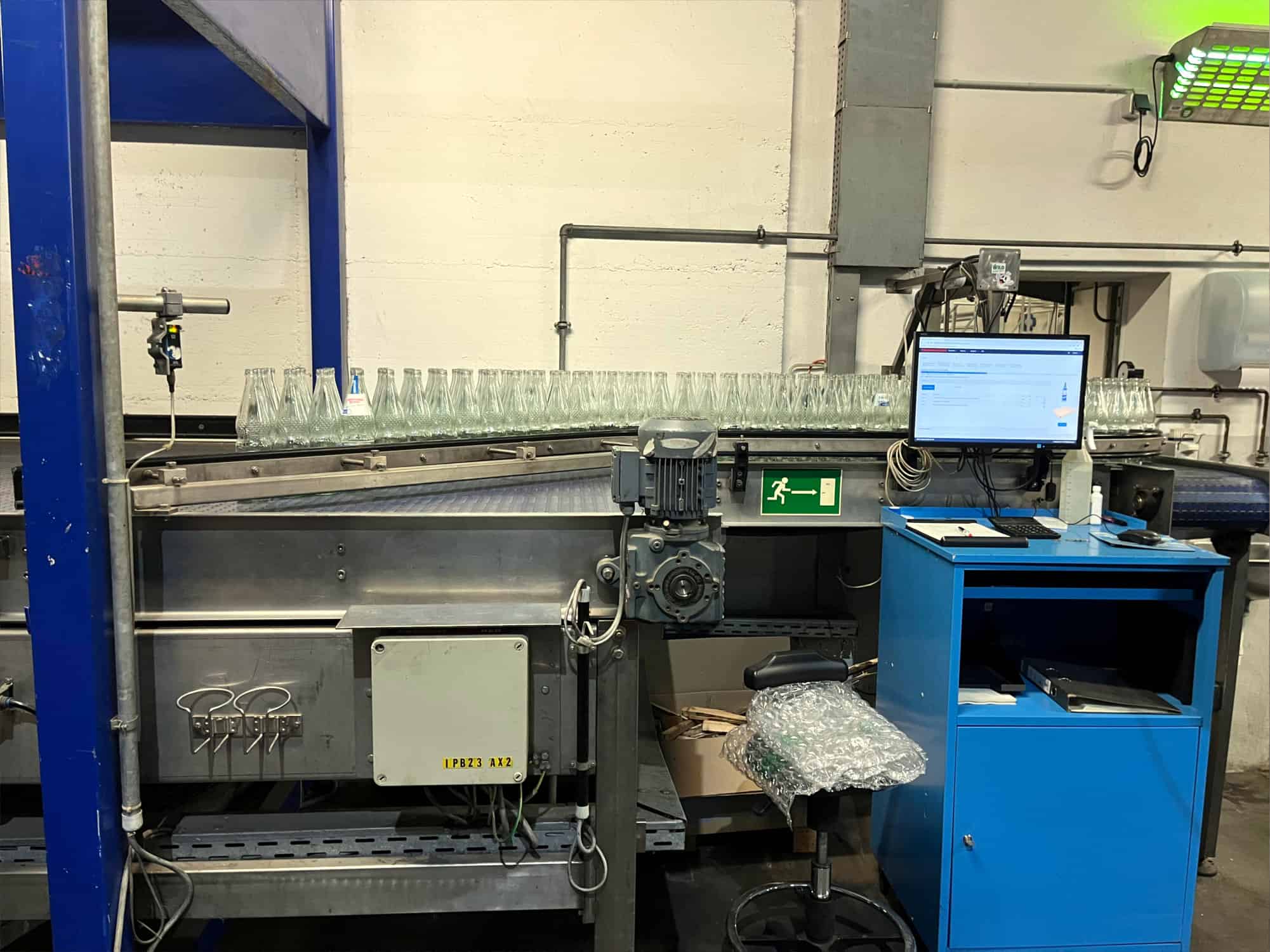

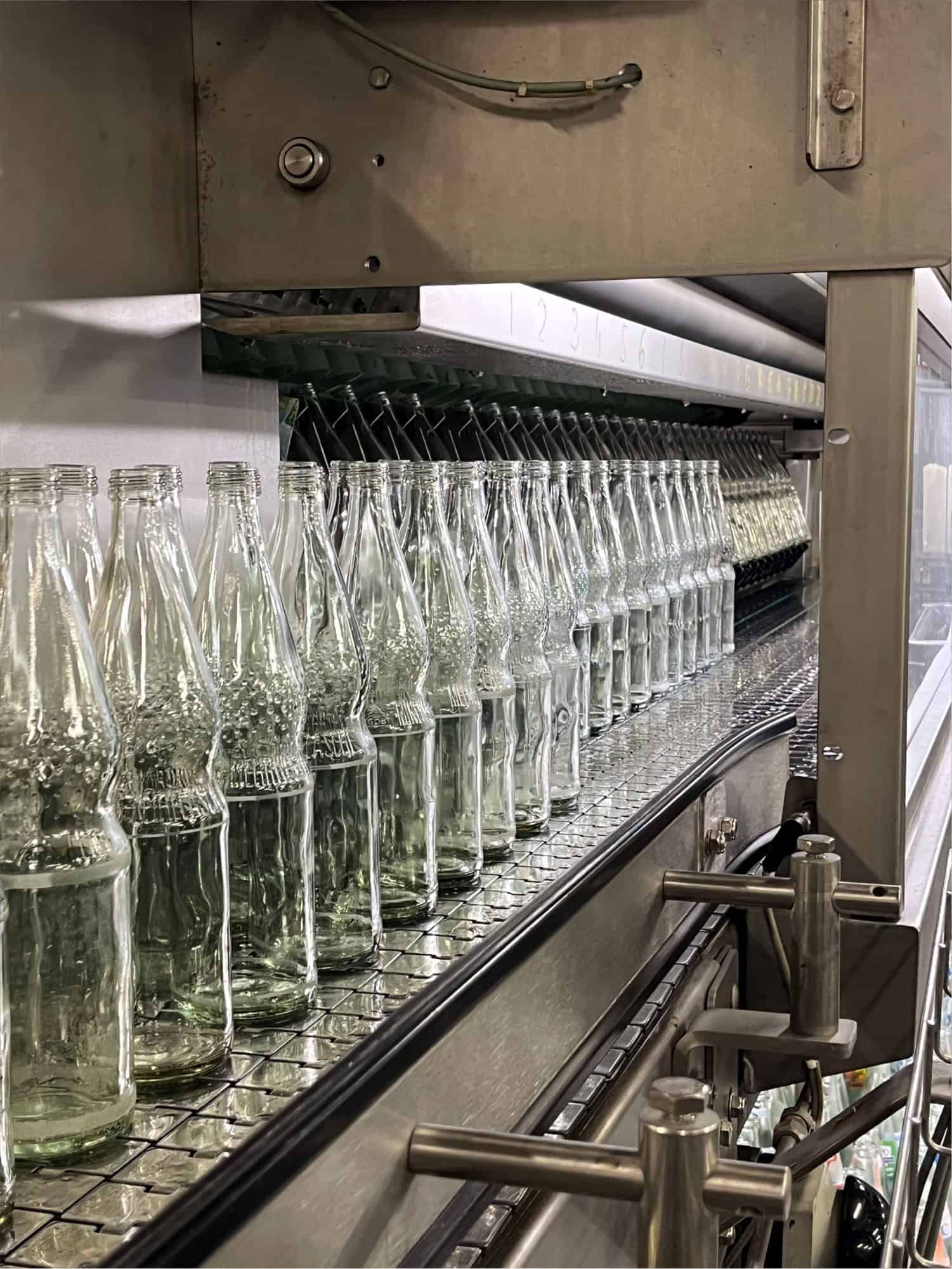

Bottle Conveyors / Buffer Tables / Glideliners

• Manufacturer: Sidel
• YOM: 2005
• Control system: Siemens S7

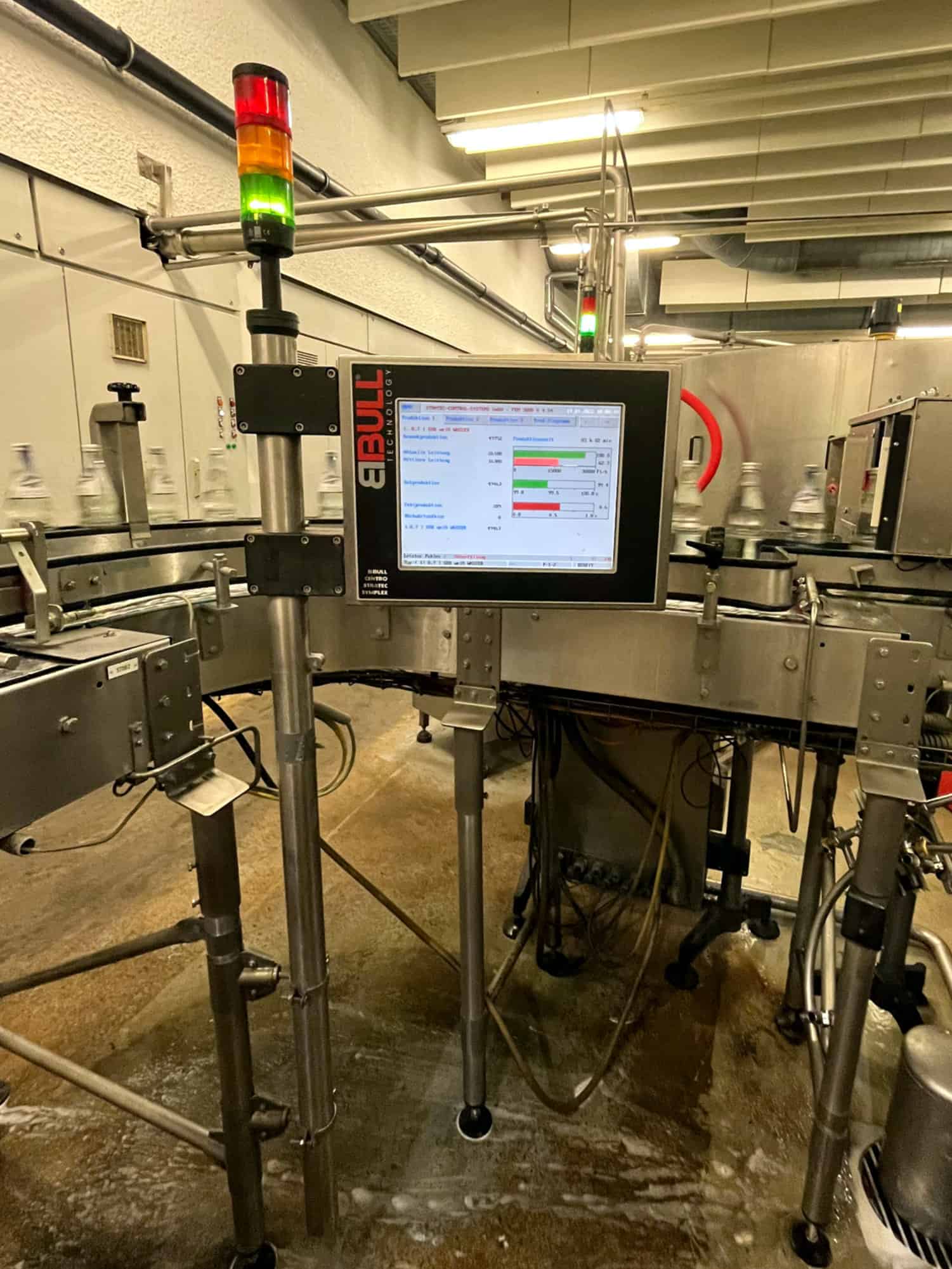

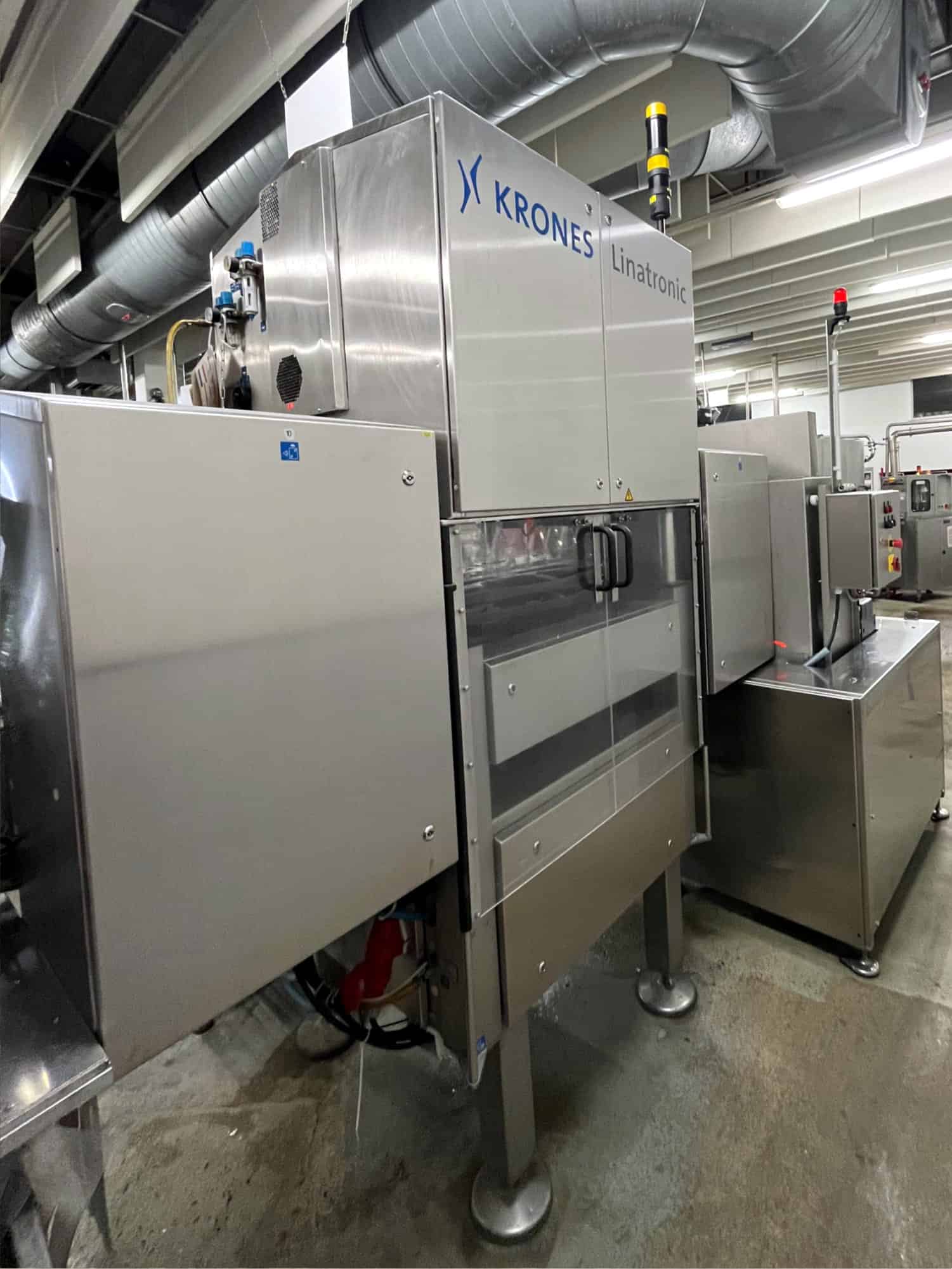

Empty Bottle Inspector

• Manufacturer: Krones
• YOM: 2005
• Control: Siemens S7

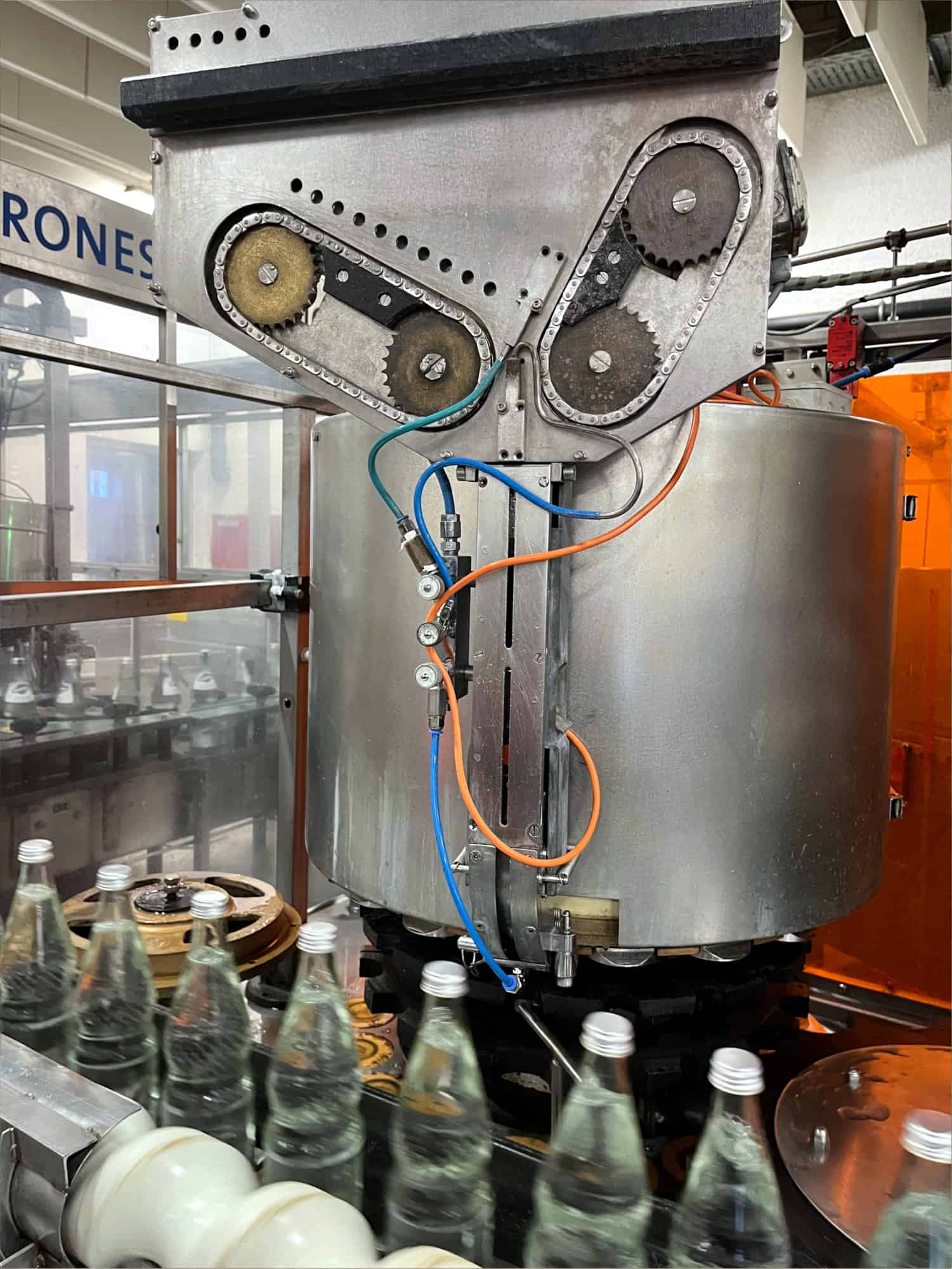

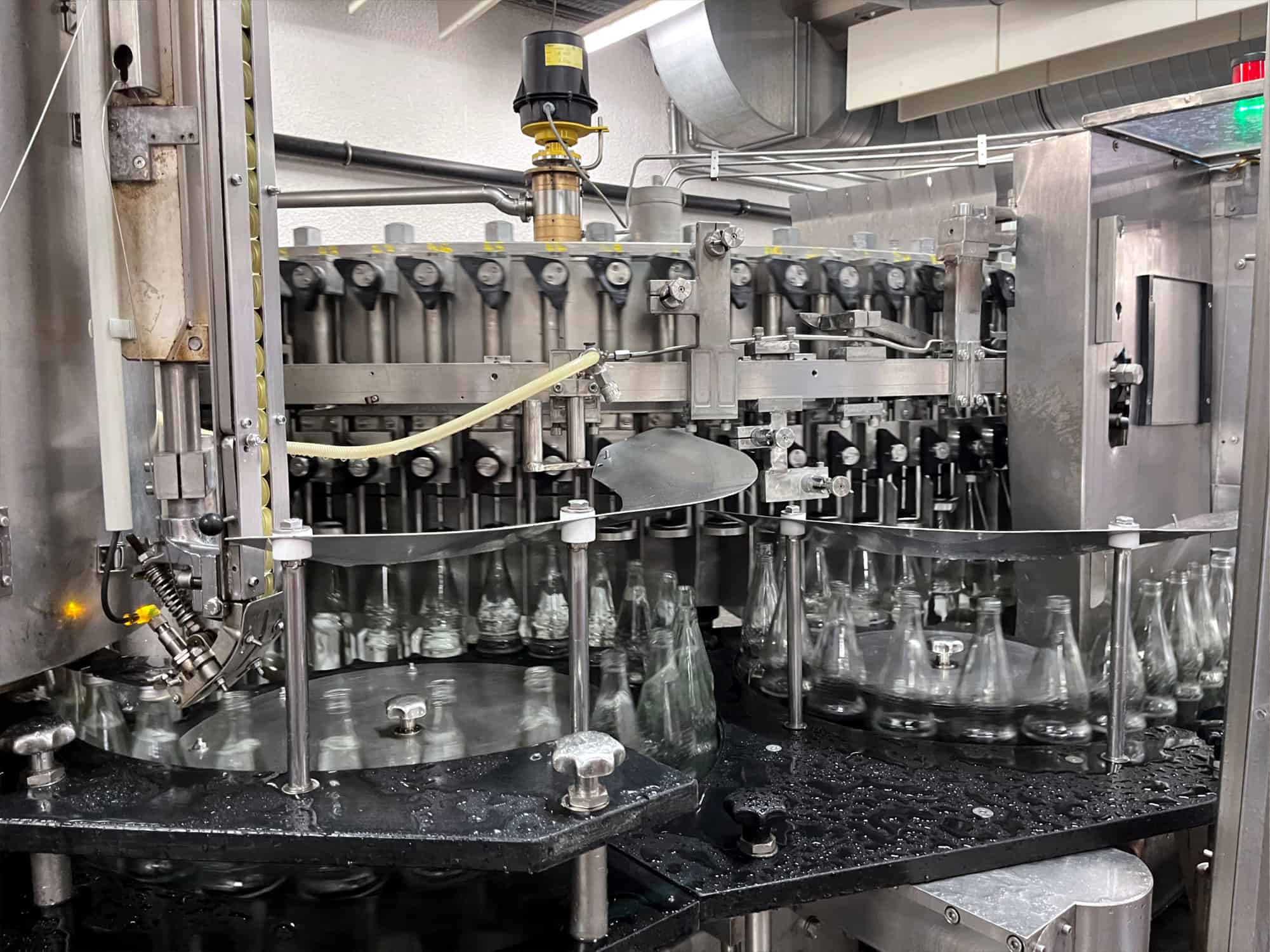

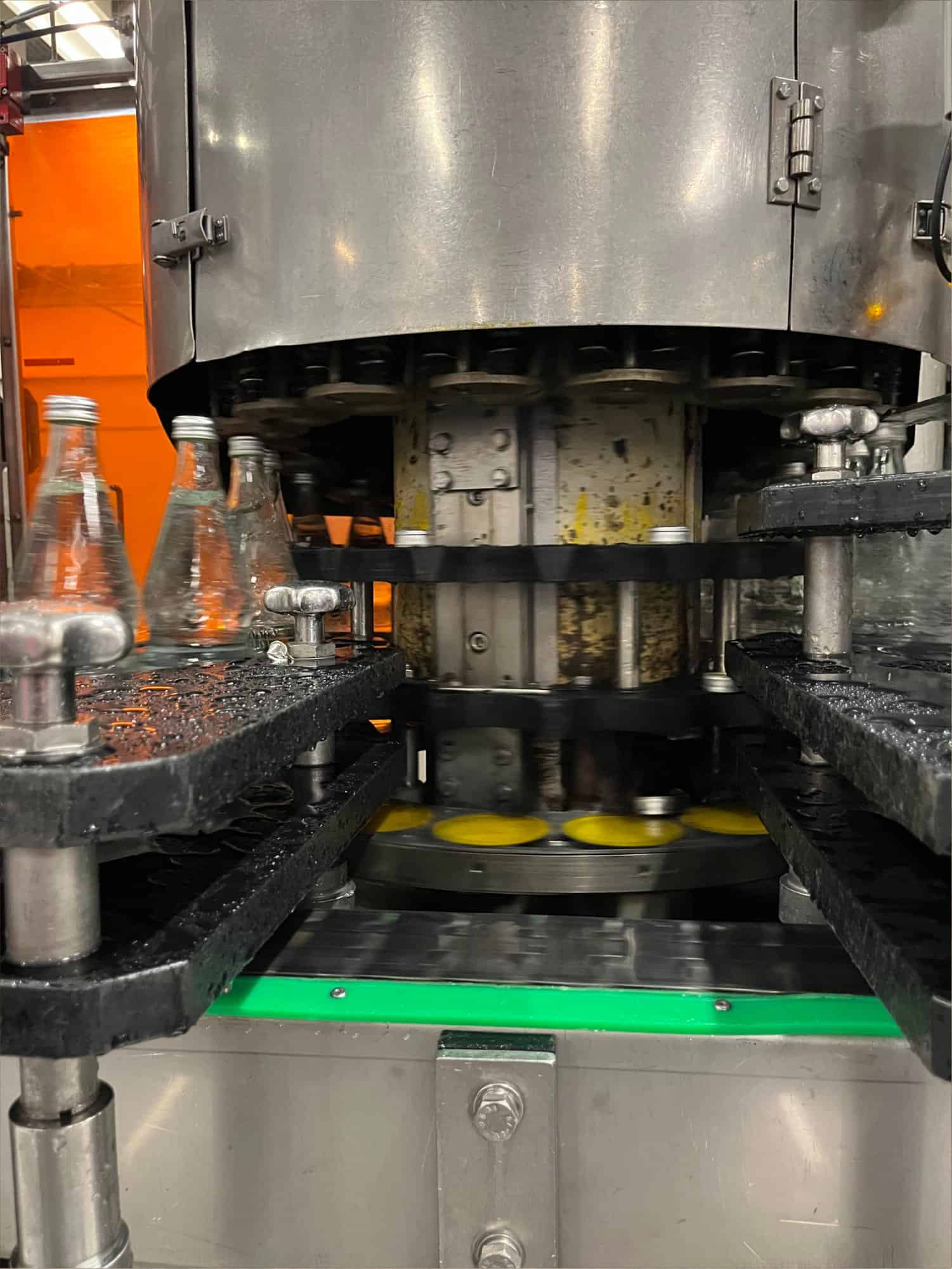

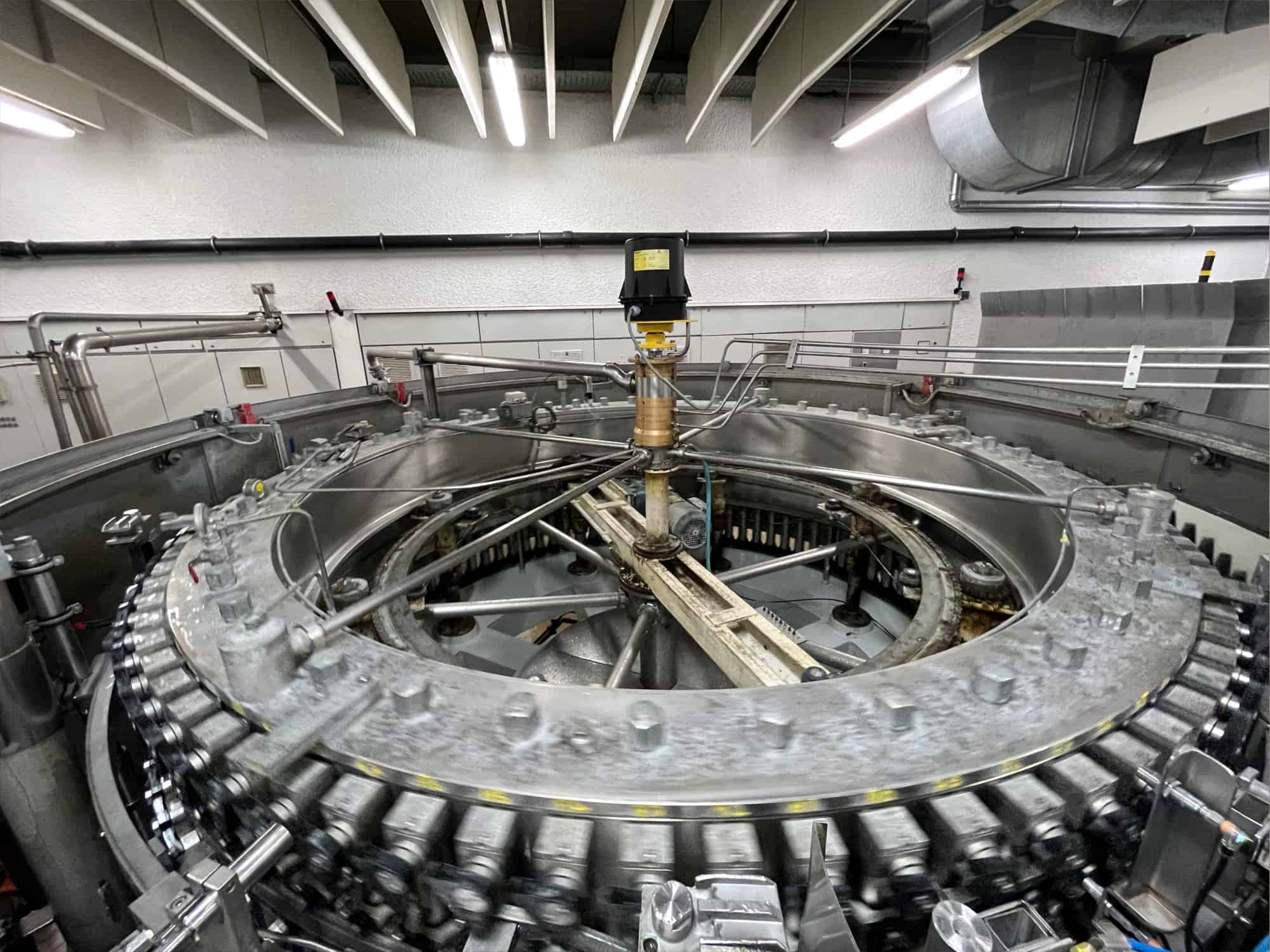

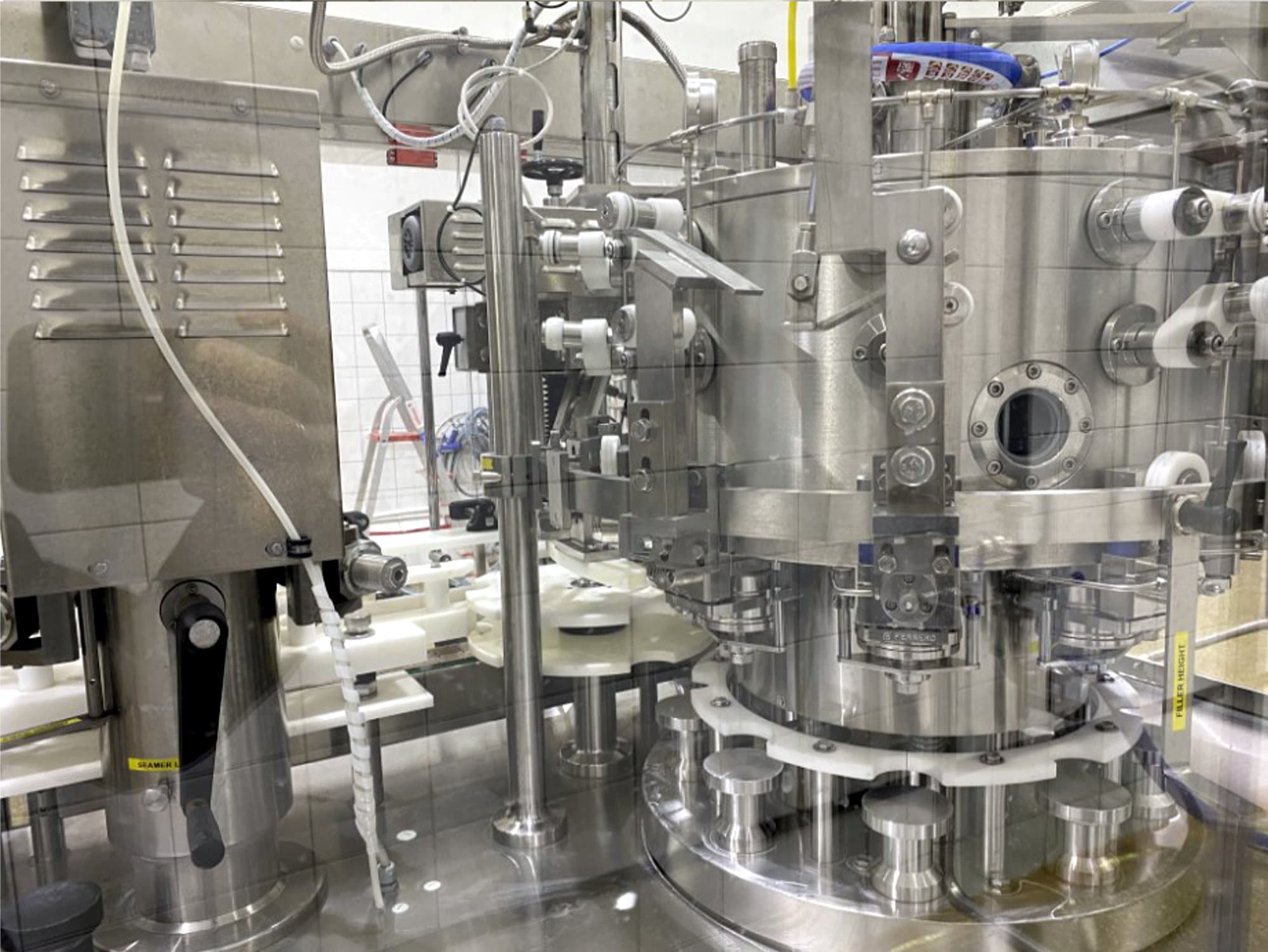

Bottle Filler with Screwer and Capper

• Manufacturer: Winterwerb Streng, Alcoa capper
• YOM: 1987
• Control: Siemens S7
• Closures: Aluminum caps and crown corks
• Special features:
  main bearing was replaced in 2019
  Level control
  Bottle burst system
  All gearboxes available as spare parts

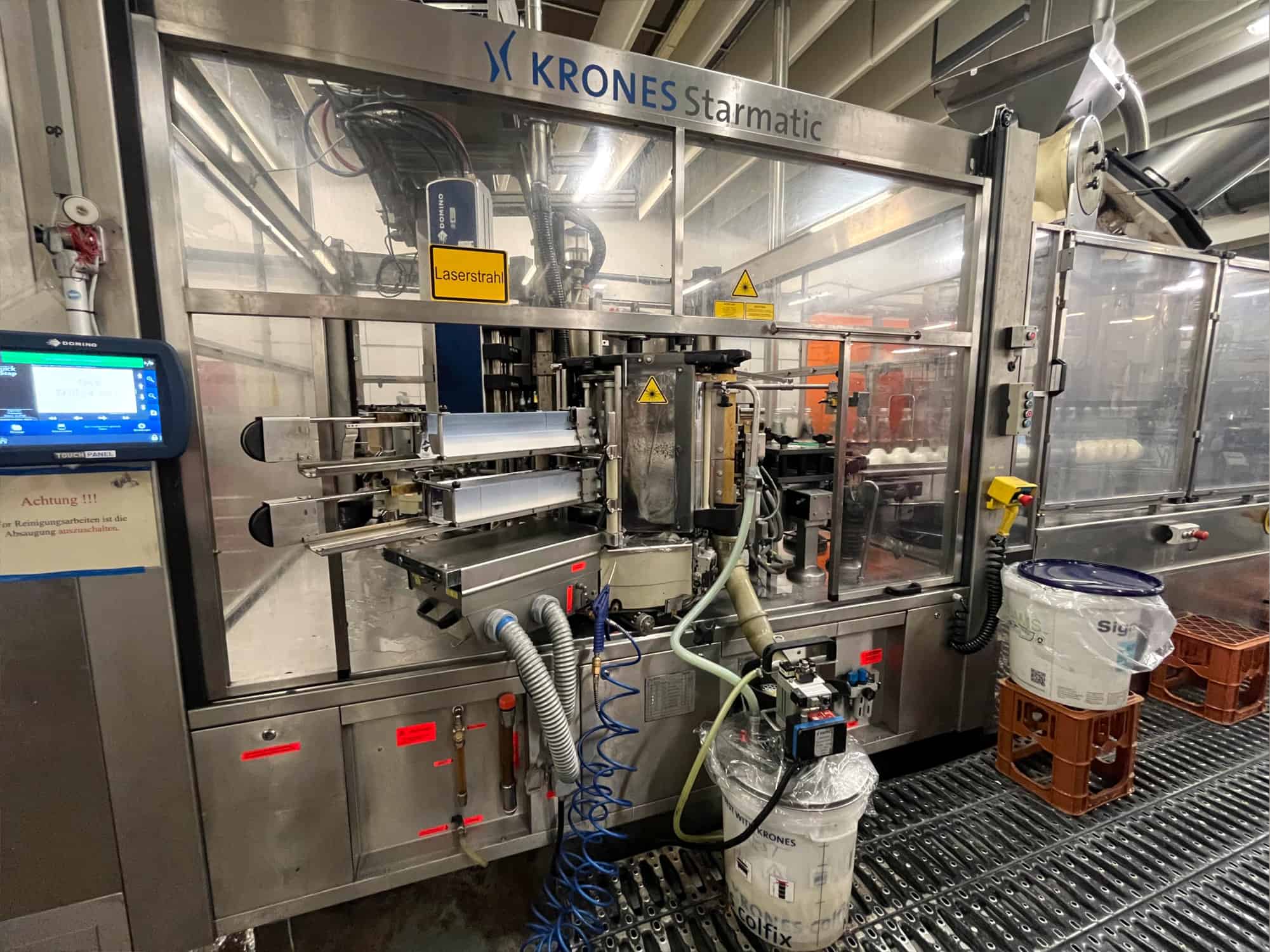

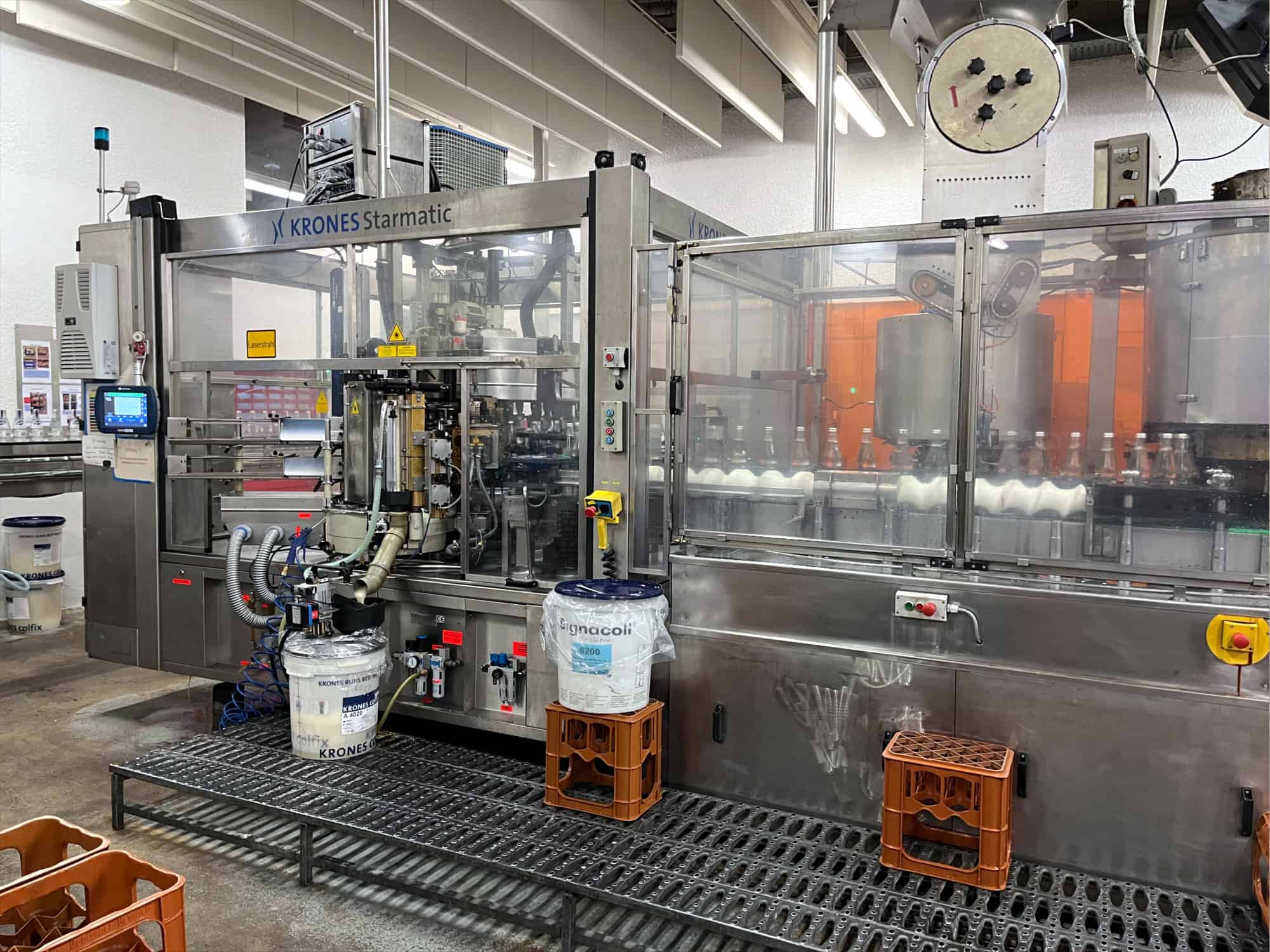

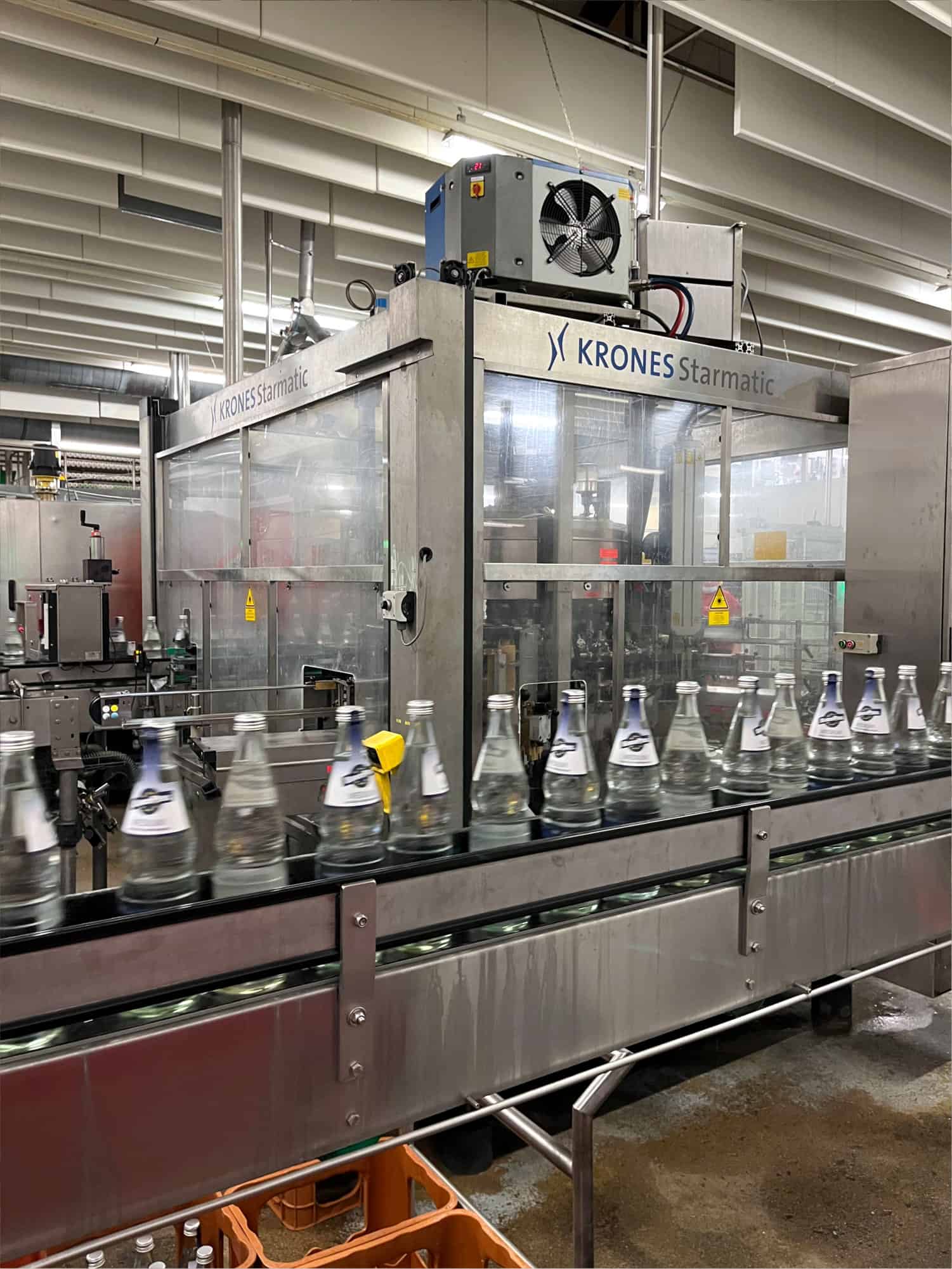

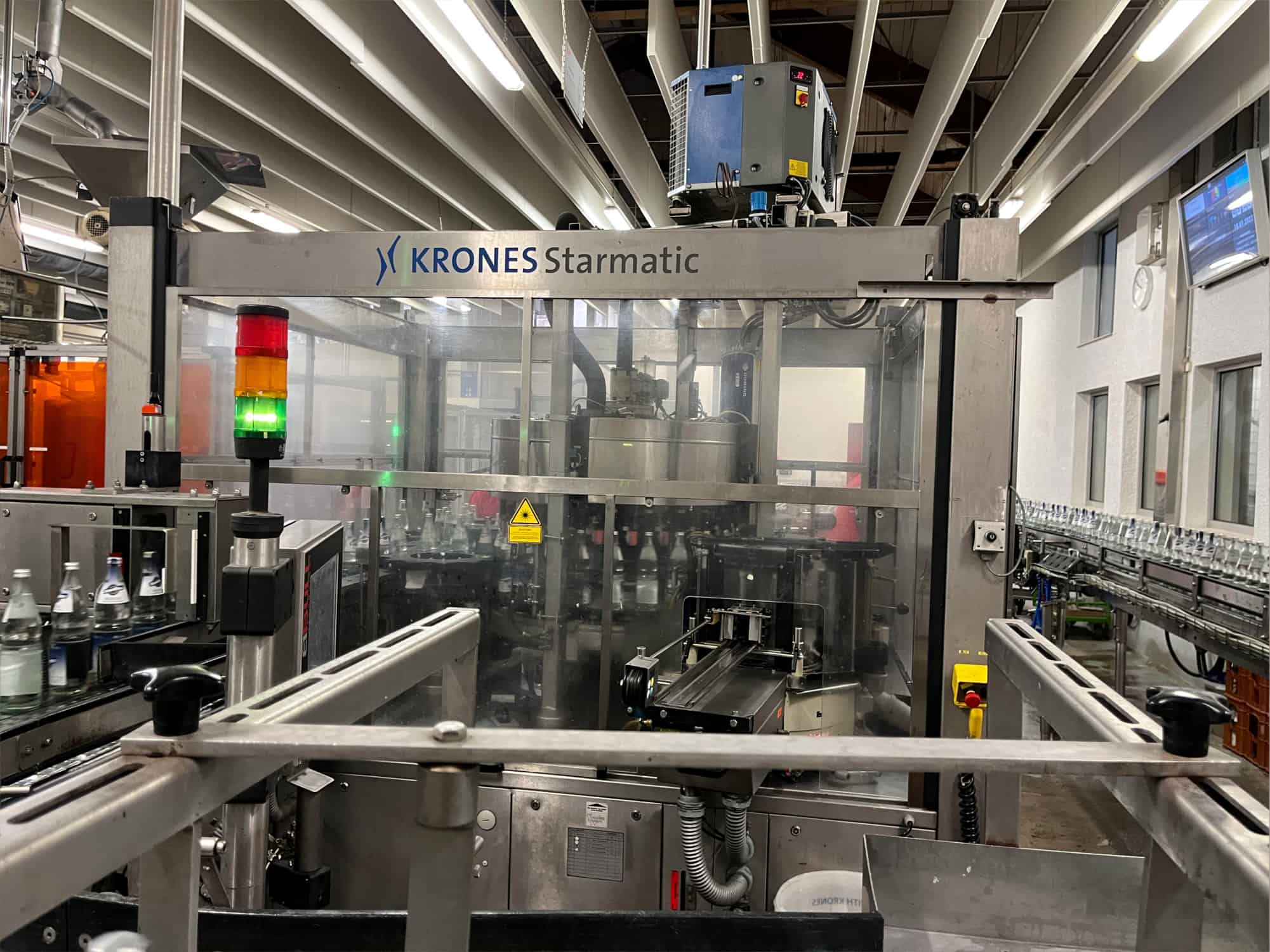

Labeling Machine

• Manufacturer: Krones
• Model: Starmatic
• YOM: 2001
• Control: Siemens S7
• Special features:
  Blocked with filling machine via screw

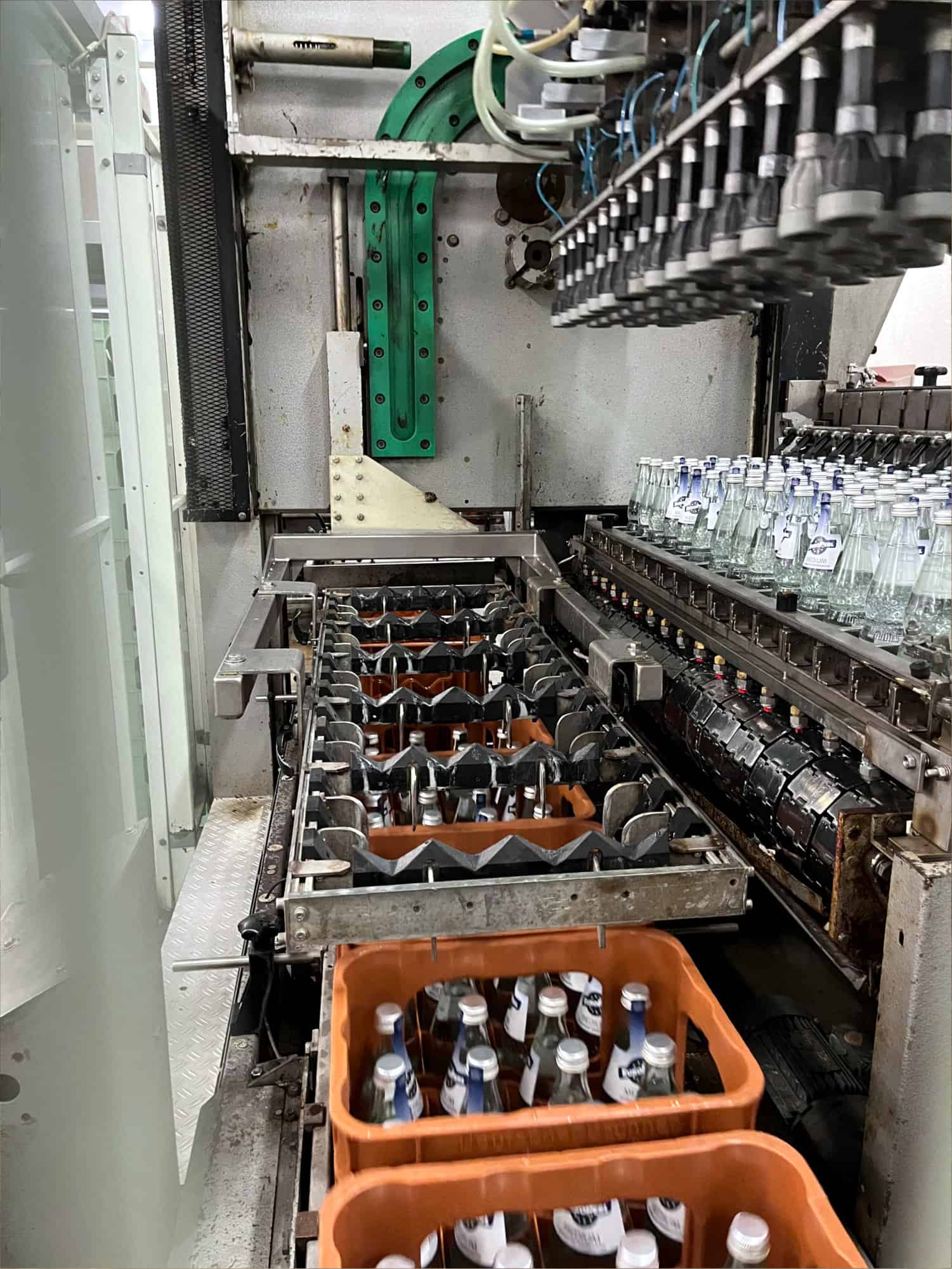

Crater

• Manufacturer: Kettner
• Model: Blitzpack Junior
• YOM: 1987
  Control: Siemens S7

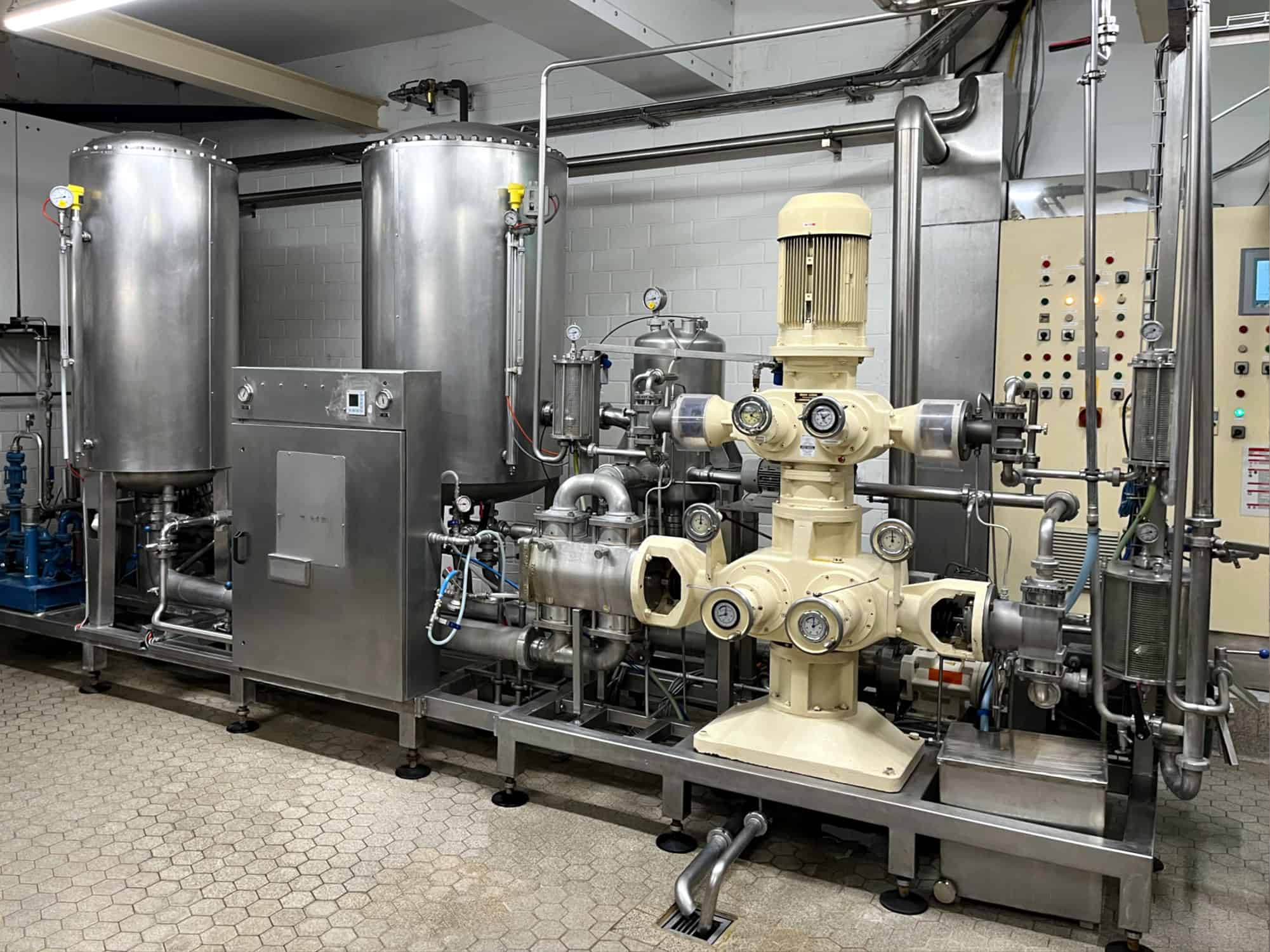

Mixing and Carbonizing Plant

• YOM: 1987
• Control: Siemens S7
• Special features:
  With automatic Co2 regulation
  Completely mounted on base frame

Accessories:

• Format Parts and various spare parts included
