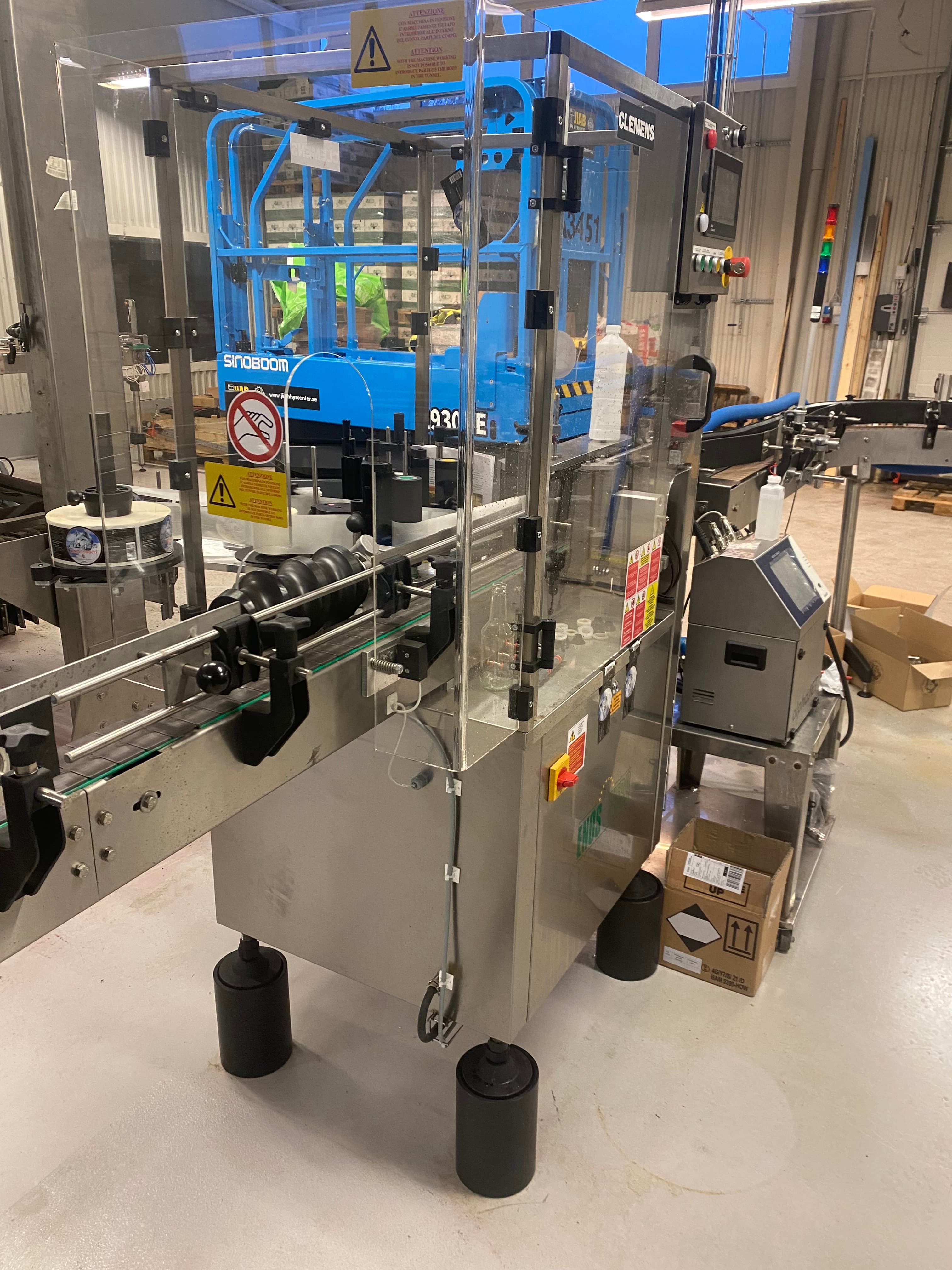

<h2>Overview</h2>

<p>The machine was built in 2020 and used in a non-returnable&nbsp;glass line for beer in Sweden. There was only single shift production. Due to Corona, sales dropped sharply, so the plant was closed and the line is now for sale.</p>

<h3>Tech Specs:</h3>

<ul>
	<li>Capacity: up to 5000 bph</li>
	<li>YOM: 2020</li>
	<li>Labels: self-adhesive labels</li>
</ul>

<ul>
</ul>

<h3>Features:</h3>

<ul>
	<li>Suitable for a wide range of bottle formats</li>
	<li>Processed were 0.25 L and 0.33 L ale bottles</li>
	<li>Others also possible</li>
</ul>

Euro C 5000

Enos Euro C 5000 Self Adhesive Labeler buy now at bevmaq SE-LAB-ENO-2020-00001

Enos Euro C 5000 Self Adhesive Labeler (2020) - SE-LAB-ENO-2020-00001

Enos Euro C 5000 Self Adhesive Labeler (2020)

Self Adhesive Labeler

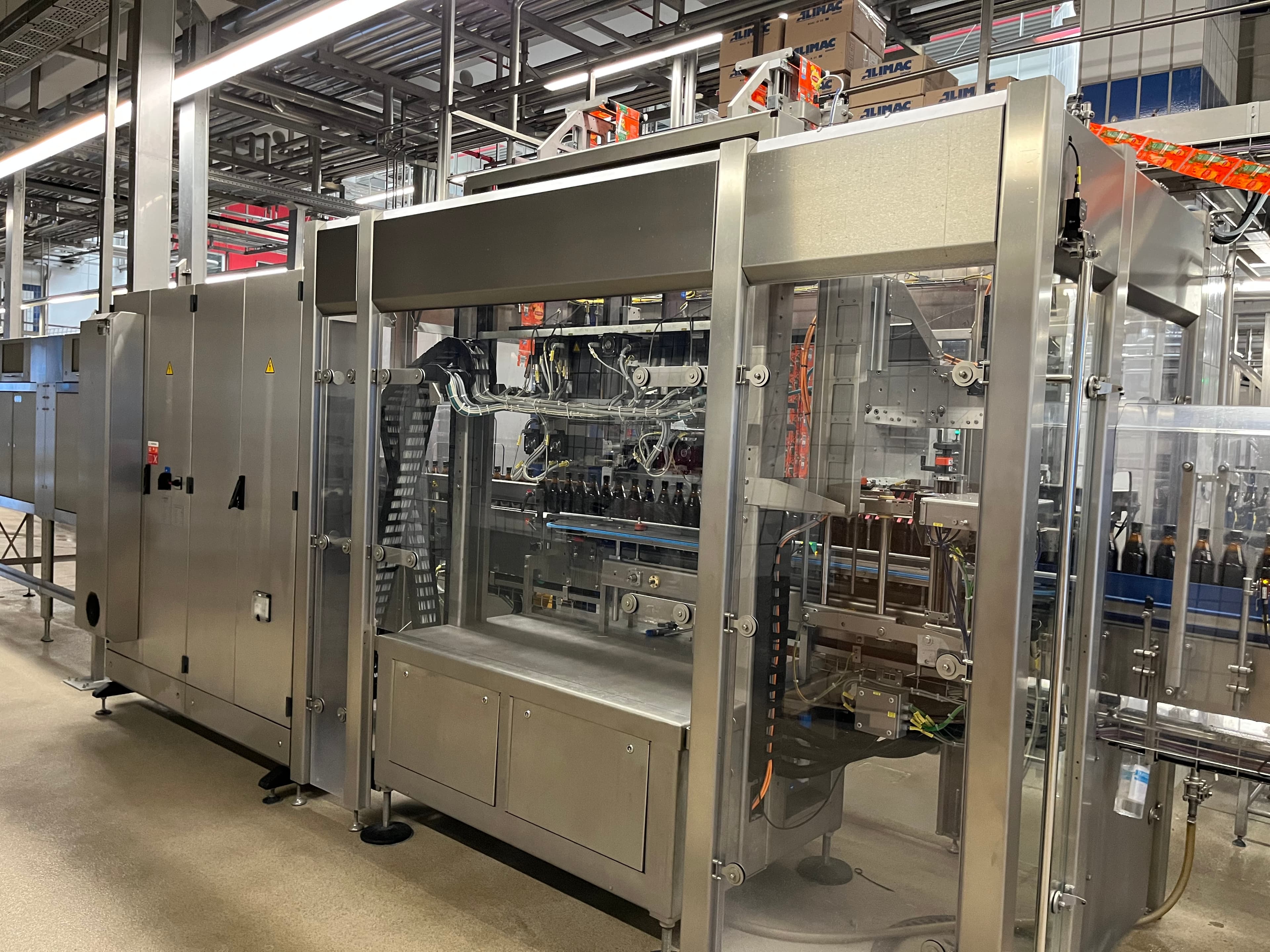

<h2>Overview</h2>

<p>The SLEEVEMATIC M 2 enables shrink sleeves to be processed. The sleeve is cut off from the film tube by the cutting unit in the correct position and transferred directly to the container without any further transfer elements. Depending on the required position, the sleeve is applied flush with the base or held at the desired height by a belt system. A downstream sleeve positioning device ensures that all sleeves are at the desired application height. Depending on the container shape and sleeve design, the sleeve can be pre-shrunk to prevent slippage. The particular advantages of this machine, which is designed as a straight-running machine, are its fast changeover capability and compact dimensions. The labeler is supplemented by a shrink tunnel, the KRONES Shrinkmat 5000 steam tunnel, with which shrink sleeves can be shrunk on. This top-maintained machine comes from the break-up of a contract bottler&rsquo;s line. The machines were mainly used to process soft drinks in PET bottles. The line is being dismantled because the space is needed for a new line for other products.</p>

<h3>Tech Specs:</h3>

<ul>
	<li>Capacity:<br />
	up to 40,000 bph<br />
	20,350 bottles at 1.5 l PET</li>
	<li>YOM: 2008</li>
</ul>

<ul>
</ul>

<h3>Features:</h3>

<ul>
	<li>Comes with Shrink Tunnel Krones Shrinkmat 5000</li>
	<li>Conveyors included</li>
</ul>

Sleevematic M2 + Shrinkmat 5000

Krones Sleevematic M2 + Shrinkmat 5000 Sleeve Labeler buy now at bevmaq DE-LAB-KRO-2008-00004

Krones Sleevematic M2 + Shrinkmat 5000 Sleeve Labeler (2008) - DE-LAB-KRO-2008-00004

Krones Sleevematic M2 + Shrinkmat 5000 Sleeve Labeler (2008)

Sleeve Labeler

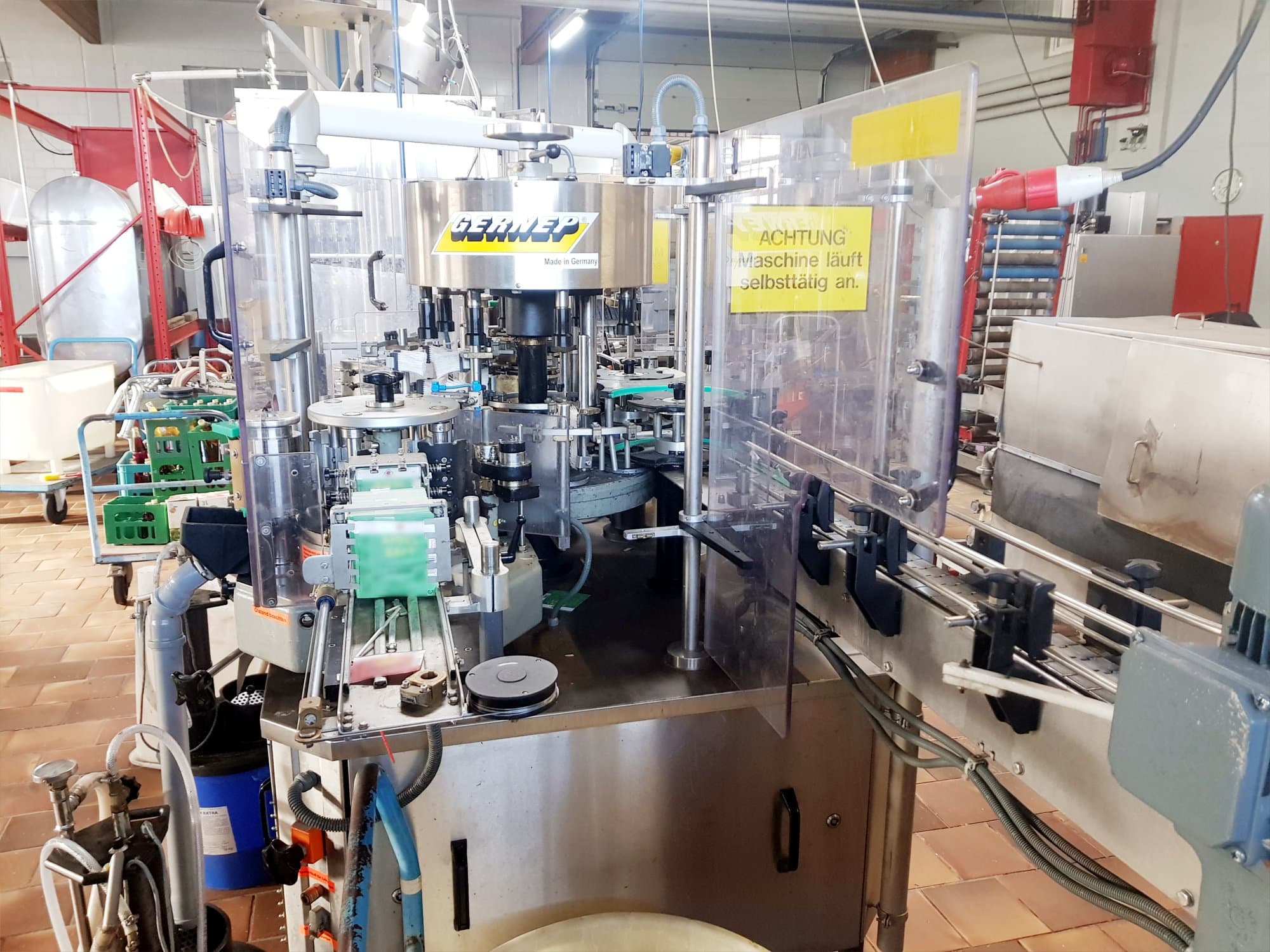

<h2>Overview</h2>

<p>This Labeling Machine was built in 2005 by Gernep. It was&nbsp;in operation in a fruit juice plant in Germany till 01/2022. In this company it was only used in single-shift operation for about 100 days a year, which is why the condition of the machine is still very good.</p>

<h3>Tech Specs:</h3>

<ul>
	<li>Capacity: 6,000 bph at 1L bottles</li>
	<li>Number of aggregates: 2</li>
</ul>

<ul>
</ul>

<h3>Accessories:</h3>

<ul>
	<li>Formats for 1.0 l VdF glass bottles, 0.7 l VdF, 0.2 l glass bottles goiter neck</li>
	<li>Various spare parts included</li>
</ul>

Labetta 438

Gernep Labetta 438 Cold Glue Labeler buy now at bevmaq DE-LAB-GER-2005-00001

Gernep Labetta 438 Cold Glue Labeler (2005) - DE-LAB-GER-2005-00001

Gernep Labetta 438 Cold Glue Labeler (2005)

Cold Glue Labeler

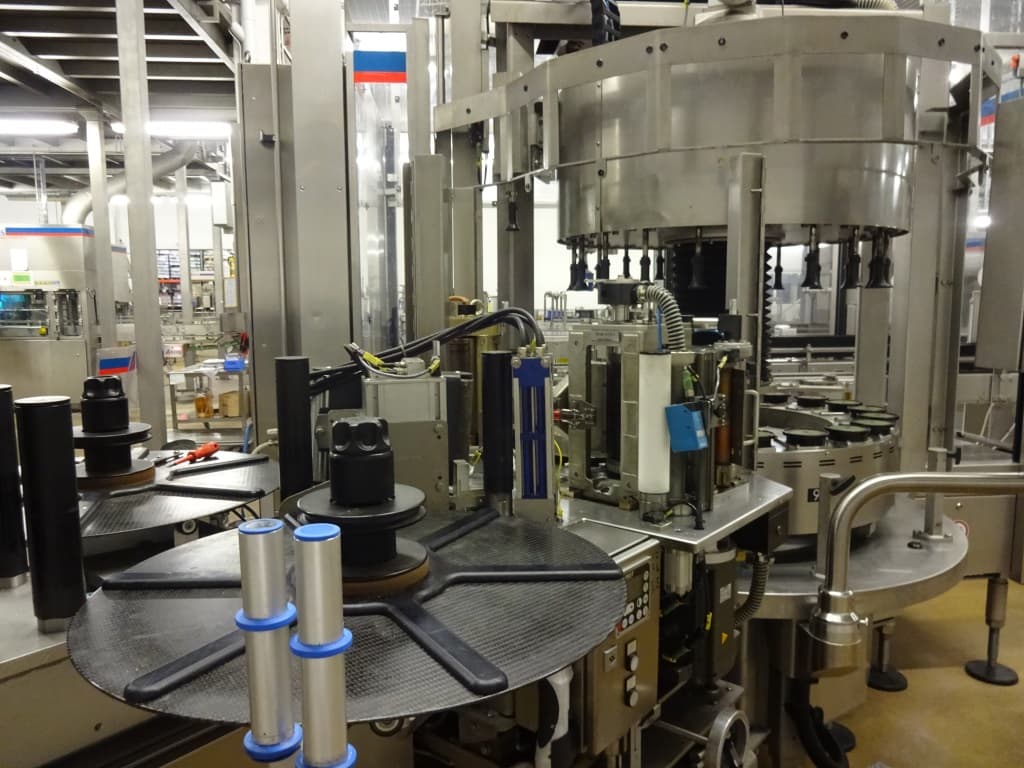

<h2>Overview</h2>

<p>The Innoket 360-145PT labeler was built, delivered and commissioned in 2010 by the German manufacturer KHS. The machine has undergone regular maintenance by trained specialists, using only original KHS spare parts. The machine was replaced by another labeler because a customer of the operator wanted his products to be produced on a particular machine with which other contract fillers had already had good experience. Because the machine has already been dismantled into its individual modules and the individual components removed, it can be easily loaded and is available at short notice.</p>

<h3>Tech Specs:</h3>

<h3>Cutterbar</h3>

<ul>
	<li>Labeling area diameter min.: 52 mm</li>
	<li>Labeling area diameter max.: 94 mm</li>
	<li>Labeling capacity max.: 45.000 units/h</li>
	<li>Label length min.: 178 mm</li>
	<li>Label length max: 309 mm</li>
	<li>Label height min.: 30 mm</li>
	<li>Label height max.: 180 mm</li>
	<li>Adhesive height from bottom: 5 mm</li>
	<li>Adhesive height from floor to: 245 mm</li>
</ul>

<h3>Machine data</h3>

<ul>
	<li>Control range: &gt; 4.500 b/h</li>
	<li>Conveyor belt height min.: 1,000 mm</li>
	<li>Conveyor belt height max.: 1,450 mm</li>
	<li>Machine height at conveyor belt height 1,000 mm: 2,355 mm</li>
	<li>Machine height at conveyor belt height 1,450 mm: 2,805 mm</li>
	<li>Machine enclosure stroke: 1,204 mm</li>
</ul>

<h3>Insertion opening width min.&nbsp;</h3>

<ul>
	<li>For front table (GT) (straight transport): 1,400 mm</li>
	<li>At front table PT (parallel transport): 1,900 mm</li>
	<li>At front table KT (head transport): 2,500 mm</li>
	<li>Height min.: 2,400 mm</li>
</ul>

<h3>Machine weight &ndash; net approx.</h3>

<ul>
	<li>For front table GT (straight transport): 6,600 kg</li>
	<li>For PT (parallel transport): 6,900 kg</li>
	<li>For front table KT (head transport): 7,000 kg</li>
</ul>

<h3>Container Dimensions</h3>

<ul>
	<li>0- min.: 43 mm</li>
	<li>0 &ndash; max.: 130 mm</li>
	<li>Height min.: 110 mm</li>
	<li>Height max.: 380 mm</li>
</ul>

<h3>Consumption Values / Connection Values</h3>

<ul>
	<li>Connected load: 30 kW</li>
	<li>On-site back-up fuse: 80 A</li>
	<li>Electrical power approx. (at 25,000 bph): 11 kWh</li>
	<li>Main drive approx.: 3 kW</li>
	<li>Air consumption at 6-10 bar (diameter 0 12 mm): 17 Nm3/h&nbsp;</li>
	<li>Air consumption with pneumatic empty bottle stabilization: 60 Nm3/h</li>
	<li>Glue consumption based on glued area: 8-12 g/m2</li>
	<li>Emission according to ISO 3744: 85 dB(A)&nbsp;</li>
</ul>

<p>All data are orientation values. Only the technical data according to the approved execution project are binding.</p>

<h3>&nbsp;Accessories:</h3>

<ul>
	<li>Spare parts</li>
	<li>4x format parts sets</li>
</ul>

Innoket 360 - 145 PT

KHS Innoket 360 - 145 PT Hot Glue Labeler buy now at bevmaq DE-LAB-KHS-2010-00001

KHS Innoket 360 - 145 PT Hot Glue Labeler (2010) - DE-LAB-KHS-2010-00001

KHS Innoket 360 - 145 PT Hot Glue Labeler (2010)

Hot Glue Labeler

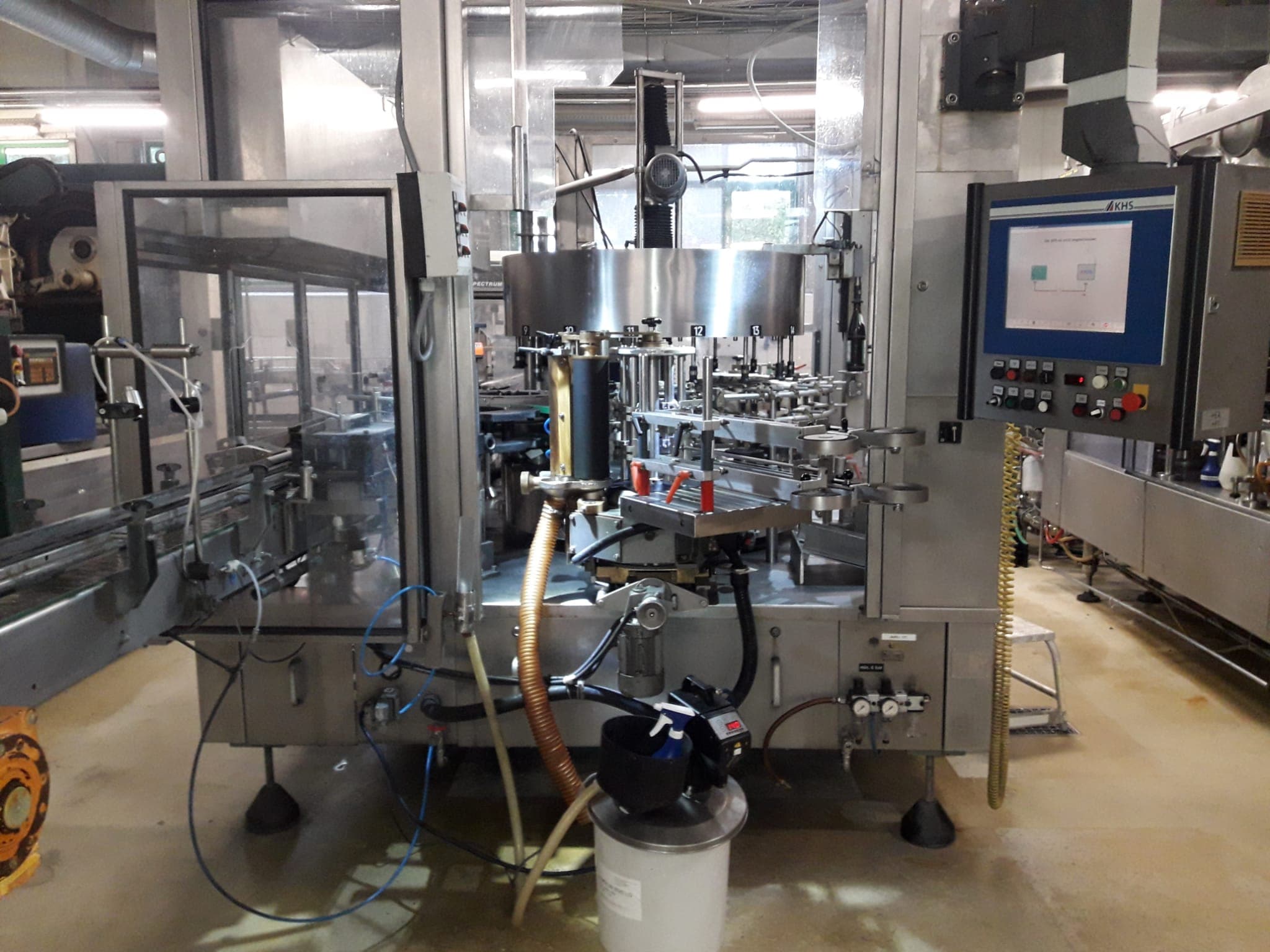

<h2>Overview</h2>

<p>The KHS Innoket Roland 16/4 H labeling machine was previously used in a brewery. There it was operated in single-shift operation. Since the sales volume has decreased, the beer of the brewery is now bottled at another location and this bottling line has become available. Due to the low number of operating hours and regular maintenance, the machine is in very good condition. Both wet glue and self-adhesive labels can be processed on the machine. The bottle plates are driven by servo motors.</p>

<h3>Tech Specs:</h3>

<ul>
	<li>Output: max. 18,000 bph</li>
	<li>Labels: self-adhesive labels and wet glue labels</li>
	<li>Bottle formats: 0.5l NRW</li>
</ul>

<h3>Special:</h3>

<ul>
	<li>
	<p>Other formats are available, as jam jars and spirits bottles were also labeled in the past. Formats can be set as desired, since the bottle plates are aligned via servos and not via a control cam</p>
	</li>
</ul>

<h3>Additional Equipment:</h3>

<ul>
	<li>Spare parts like&nbsp;servo motor, infeed screw with gearbox</li>
</ul>

Innoket Roland 16/4 H

KHS Innoket Roland 16/4 H Cold Glue Labeler buy now at bevmaq DE-LAB-KHS-2006-00001

KHS Innoket Roland 16/4 H Cold Glue Labeler (2006) - DE-LAB-KHS-2006-00001

KHS Innoket Roland 16/4 H Cold Glue Labeler (2006)

<p>The SLEEVEMATIC M 2 enables shrink sleeves to be processed. The sleeve is cut off from the film tube by the cutting unit in the correct position and transferred directly to the container without any further transfer elements. Depending on the required position, the sleeve is applied flush with the base or held at the desired height by a belt system. A downstream sleeve positioning device ensures that all sleeves are at the desired application height. Depending on the container shape and sleeve design, the sleeve can be pre-shrunk to prevent slippage. The particular advantages of this machine, which is designed as a straight-running machine, are its fast changeover capability and compact dimensions. The labeler is supplemented by a shrink tunnel, the KRONES Shrinkmat 5000 steam tunnel, with which shrink sleeves can be shrunk on. This top-maintained machine comes from the break-up of a contract bottler&rsquo;s line. The machines were mainly used to process soft drinks in PET bottles. The line is being dismantled because the space is needed for a new line for other products.</p>

<p>Overview:</p>

<p>Manufacturer: Krones<br />
Machine type: Labeler<br />
Model: Sleevematic M2 + Shrinkmat 5000<br />
Availability: Immediately</p>

<p>Tech Specs:</p>

<ul>
	<li>Capacity:<br />
	up to 40,000 bph<br />
	20,350 bottles at 1.5 l PET</li>
	<li>YOM: 2008</li>
</ul>

<ul>
</ul>

<p>Features:</p>

<ul>
	<li>comes with Shrink Tunnel Krones Shrinkmat 5000</li>
	<li>conveyors included</li>
</ul>

Sleevematic M2

Krones Sleevematic M2 Sleeve Labeler buy now at bevmaq DE-LAB-KRO-2008-00003

Krones Sleevematic M2 Sleeve Labeler (2008) - DE-LAB-KRO-2008-00003

Krones Sleevematic M2 Sleeve Labeler (2008)
